| Merk – Marque: | Castaldi-Norlight |
| Materiaal – Materiaux: | Corrosion resistant extruded aluminium body |
| Type: |
Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: |
120X120X124 mm |
| Kleur – Couleur: | Embossed White / Graphite Satin Finish |
| Diffuser – Diffuseur: | Veiligheidsglas – Verre de sécurité |
| Bundel – Faisceau: | Dark / Diffused Rotosymmetric / Wall Washer Side 4 |
| Uitrusting – Equipement: | SLED |
| Systeemvermogen – Puissance de système: | 21W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
Dark: 4000°K: 1226 lm / 3000°K: 1370 lm
Diffused Rotosymmetric: 4000°K: 1183 lm / 3000°K: 1321 lm
Wall Washer Side 4: 4000°K: 1021 lm / 3000°K: 1140 lm |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
On-Off / DALI |
Axel Square 9 Pendant
Fiche technique

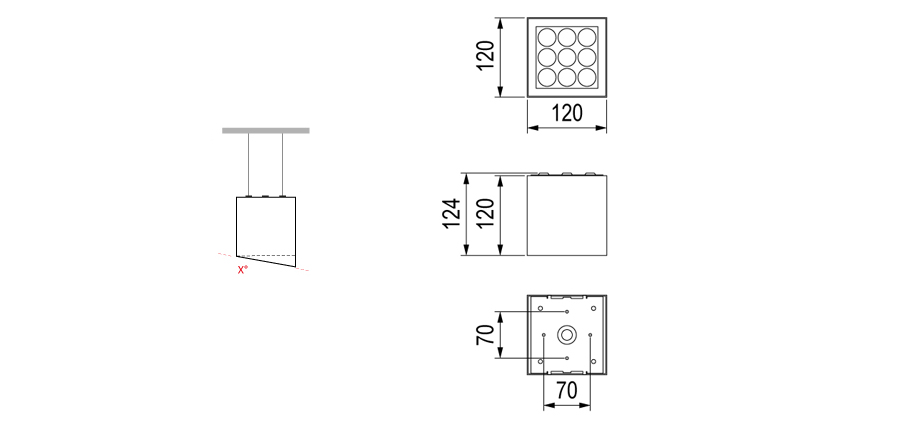

Dessin technique
