| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Polycarbonate Tubular Body & Aluminium End Caps |
| Type: |
Pendel – Suspension |
|
Afmetingen armatuur – Dimensions armature: |
Ø70x1176mm (28W) Ø70x1459mm (35W) |
| Kleur – Couleur: |
Mat Zwart – Matt Noir |
|
Diffuser – Diffuseur |
Clear Polycarbonate |
|
Bundel – Faisceau: |
16º / 40º / Elliptical (35º x 12º) |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 28W / 35W |
| Kelvin graden – Degré Kelvin: |
3000°K / 4000°K |
| Lumen |
– 3000°K: 16º: 3560 lm (28W) / 4450 lm (35W) 40º: 3591 lm (28W) / 4488 lm (35W) 35º x 12º: 3348 lm (28W) / 4185 lm (35W)
– 4000°K: 16º: 3615 lm (28W) / 4518 lm (35W) 40º: 3646 lm (28W) / 4557 lm (35W) 35º x 12º: 3399 lm (28W) / 4249 lm (35W) |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI / DIM 1 – 10 V / PHASE-CUT 2700ºK / 5000ºK / 6500 ºK Bluetooth |
Tupoli 70 I
Fiche technique

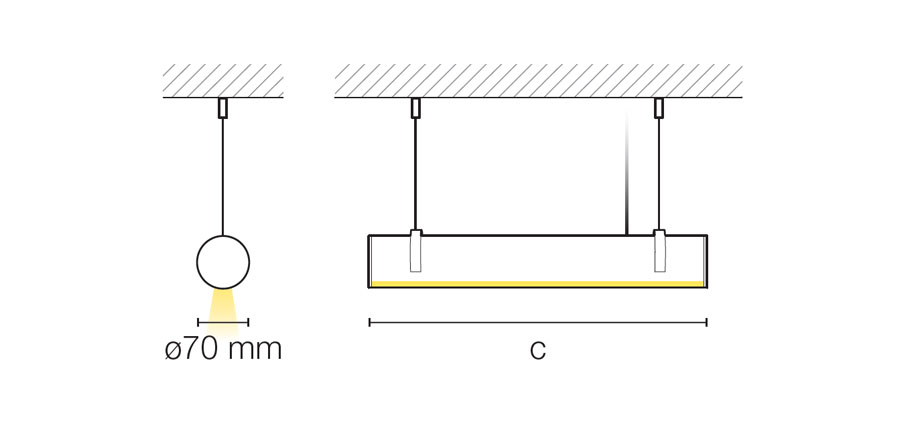

Dessin technique
