| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: | Opbouw / Apparent |

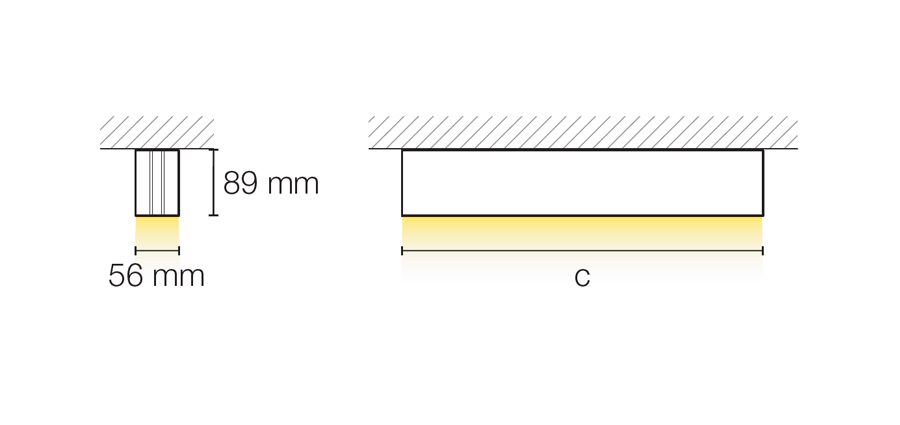

| Afmetingen armatuur – Dimensions armature: | 56x89xCmm
C = 570mm / C = 850mm / C = 1131mm C = 1412mm / C = 2252mm / C = 2817mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur | Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | C = 570mm – 13W / 25W
C = 850mm – 19W / 38W C = 1131mm – 25W / 50W C = 1412mm – 31W / 63W C = 2252mm – 50W / 101W C = 2817mm – 63W / 126W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | C = 570mm
979 lm (3000°K) / 1025 lm (4000°K) 1957 lm (3000°K) / 2048 lm (4000°K) C = 850mm 1468 lm (3000°K) / 1536 lm (4000°K) 2936 lm (3000°K) / 3072 lm (4000°K) C = 1131mm 1957 lm (3000°K) / 2048 lm (4000°K) 3915 lm (3000°K) / 4096 lm (4000°K) C = 1412mm 2446 lm (3000°K) / 2560 lm (4000°K) 4893 lm (3000°K) / 5120 lm (4000°K) C = 2252mm 3914 lm (3000°K) / 4096 lm (4000°K) 7830 lm (3000°K) / 8192 lm (4000°K) C = 2817mm 4893 lm (3000°K) / 5121 lm (4000°K) 9787 lm (3000°K) / 10240 lm (4000°K) |
| RA – CRI: | >80 |
| UGR: | <19 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (Inclu.) |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP54 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / Push
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700K / 5000ºK / 6500ºK |
Weline Surface IP54
Fiche technique
Dessin technique
