BINA SQUARE RECESSED

BINA SQUARE RECESSED
BINA SQUARE RECESSED

Technische Fiche

Merk – Marque: Molto Luce
Materiaal – Materiaux: Aluminium
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: Body:

400x400mm / 600x600mm / 800x800mm / 1000x1000mm



Base:

Ø230x36mm / Ø445x36mm

Housing Colours: Wit-Blanc / Zwart-Noir / Grey
Ring Colours: Wit-Blanc / Zwart-Noir / Grey
Diffuser – Diffuseur Opal cover flat / Microprismatic cover
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: Without indirect beam:

30W / 39W / 60W / 78W



With indirect beam:

45W / 54W / 86W / 104W

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: Without indirect beam:

30W

3300 lm (2700°K) / 3430 lm (3000°K) / 3430 lm (3000°K) / 3430 lm (4000°K)

39W

4590 lm (2700°K) / 4770 lm (3000°K) / 4770 lm (3000°K) / 4770 lm (4000°K)

60W

6850 lm (2700°K) / 7110 lm (3000°K) / 7110 lm (3000°K) / 7110 lm (4000°K)

78W

9100 lm (2700°K) / 9450 lm (3000°K) / 9450 lm (3000°K) / 9450 lm (4000°K)



With indirect beam:

45W

5170 lm (2700°K) / 5380 lm (3000°K) / 5380 lm (3000°K) / 5380 lm (4000°K)

54W

6460 lm (2700°K) / 6720 lm (3000°K) / 6720 lm (3000°K) / 6720 lm (4000°K)

86W

9960 lm (2700°K) / 10330 lm (3000°K) / 10330 lm (3000°K) / 10330 lm (4000°K)

104W

12210 lm (2700°K) / 12670 lm (3000°K) / 12670 lm (3000°K) / 12670 lm (4000°K)

RA – CRI: >80
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V AC / 50-60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option On-Off / DALI / Battery 3h / Batteru 3h DALI / Zigbee / Smart Bluetooth

Tunable White 2700°K – 6500°K

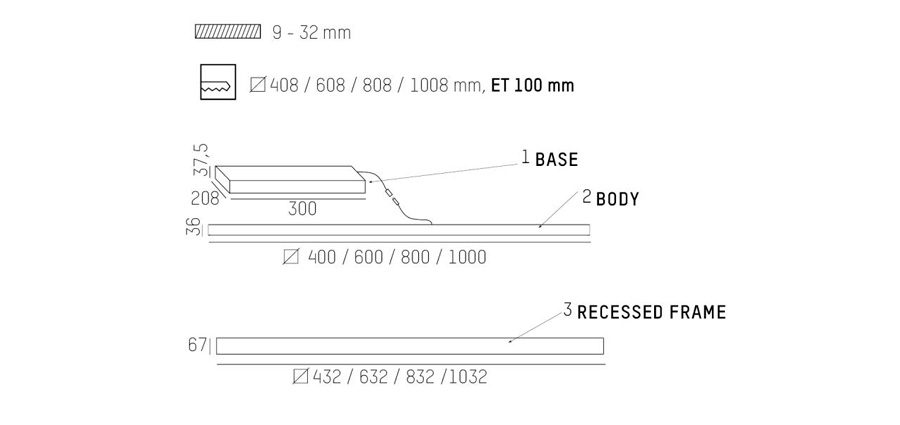

Technische tekening

BINA SQUARE RECESSED

BINA SQUARE RECESSED BINA SQUARE RECESSED

Technische Fiche

Merk – Marque: Molto Luce
Materiaal – Materiaux: Aluminium
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: Body:

400x400mm / 600x600mm / 800x800mm / 1000x1000mm



Base:

Ø230x36mm / Ø445x36mm

Housing Colours: Wit-Blanc / Zwart-Noir / Grey
Ring Colours: Wit-Blanc / Zwart-Noir / Grey
Diffuser – Diffuseur Opal cover flat / Microprismatic cover
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: Without indirect beam:

30W / 39W / 60W / 78W



With indirect beam:

45W / 54W / 86W / 104W

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: Without indirect beam:

30W

3300 lm (2700°K) / 3430 lm (3000°K) / 3430 lm (3000°K) / 3430 lm (4000°K)

39W

4590 lm (2700°K) / 4770 lm (3000°K) / 4770 lm (3000°K) / 4770 lm (4000°K)

60W

6850 lm (2700°K) / 7110 lm (3000°K) / 7110 lm (3000°K) / 7110 lm (4000°K)

78W

9100 lm (2700°K) / 9450 lm (3000°K) / 9450 lm (3000°K) / 9450 lm (4000°K)



With indirect beam:

45W

5170 lm (2700°K) / 5380 lm (3000°K) / 5380 lm (3000°K) / 5380 lm (4000°K)

54W

6460 lm (2700°K) / 6720 lm (3000°K) / 6720 lm (3000°K) / 6720 lm (4000°K)

86W

9960 lm (2700°K) / 10330 lm (3000°K) / 10330 lm (3000°K) / 10330 lm (4000°K)

104W

12210 lm (2700°K) / 12670 lm (3000°K) / 12670 lm (3000°K) / 12670 lm (4000°K)

RA – CRI: >80
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V AC / 50-60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option On-Off / DALI / Battery 3h / Batteru 3h DALI / Zigbee / Smart Bluetooth

Tunable White 2700°K – 6500°K

Technische tekening
