| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 50x300x300mm / 50x400x400mm
50x500x500mm / 50x600x600mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Aluminium Anodized |
| Diffuser – Diffuseur | PMMA Opal (Op) / Microprismatisch-Microprismatique (Mp) |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 11W / 16W / 26W / 35W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Direct Beam
11W: Pm: 1131 lm (3000°K) / 1210 lm (4000°K) Mp: 1169 lm (3000°K) / 1250 lm (4000°K)
16W: Pm: 1982 lm (3000°K) / 2120 lm (4000°K) Mp: 2010 lm (3000°K) / 2150 lm (4000°K)
26W: Pm: 3076 lm (3000°K) / 3290 lm (4000°K) Mp: 3114 lm (3000°K) / 3330 lm (4000°K)
35W: Pm: 4441 lm (3000°K) / 4750 lm (4000°K) Mp: 4497 lm (3000°K) / 4810 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / Push
RA-CRI: >90 |
Cadan Nova S SD
Technische Fiche

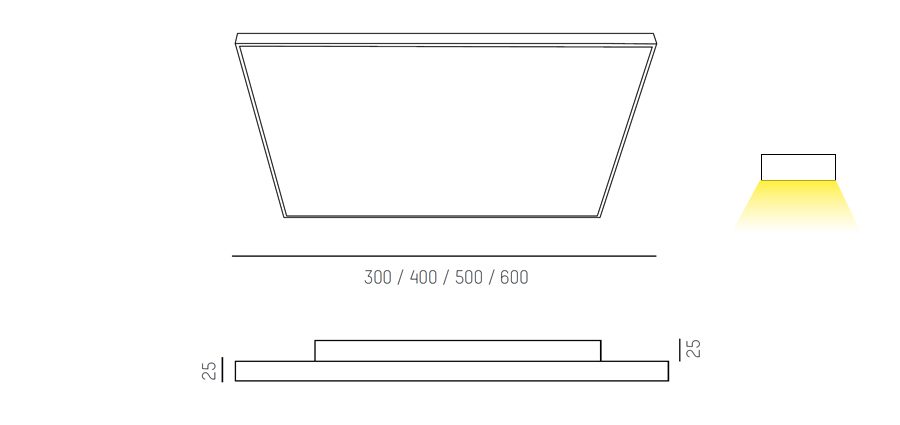

Technische tekening
