| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: |
Pendel – Suspension |
|
Afmetingen armatuur – Dimensions armature: |
Ø400x90mm / Ø550x90mm / Ø830x90mm / Ø1110x90mm |
| Kleur – Couleur: |
Matt Black / Matt White |
|
Diffuser – Diffuseur |
Opal / Microprismatic |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 31W / 43W / 48W / 70W / 86W / 129W / 142W / 218W |
| Kelvin graden – Degré Kelvin: |
3000°K / 4000°K |
| Lumen: |
70% direct and 30% indirect light distribution
Opal: Ø400: 31W: 3508lm / 43W: 4683lm Ø550: 48W: 5580lm / 70W: 7938lm Ø830: 86W: 10318lm / 129W: 14965lm Ø1110: 142W: 16825lm / 218W: 24594lm
Microprismatic: Ø400: 31W: 3598lm / 43W: 3597lm Ø550: 48W: 5735lm / 70W: 8177lm Ø830: 86W: 10556lm / 129W: 15302lm Ø1110: 142W: 17504lm / 218W: 19531lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option: |
DALI / Push / DSI / DIM 1-10V / Phase-cut
Direct / Indirect – Separate Control
Turnable White / RGB / RGBW
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700ºK / 5000ºK / 6500ºK |
ASTRA 90 DIR/IND
Technische Fiche

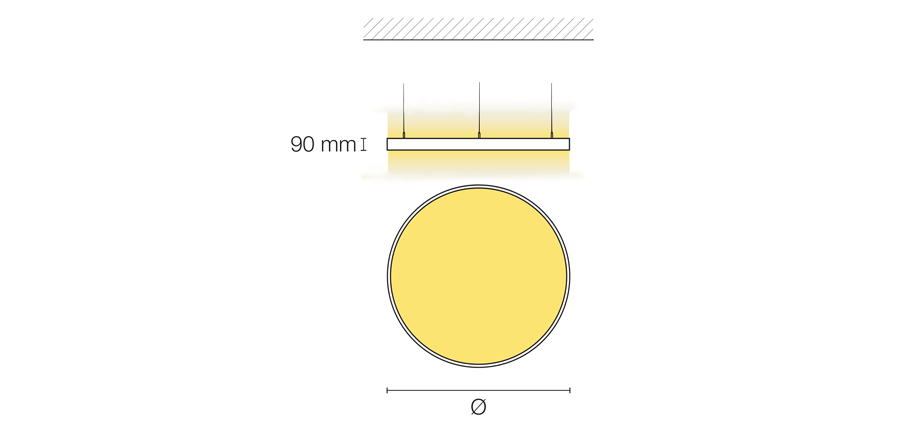

Technische tekening
