| Merk – Marque: | Petridis |
| Materiaal – Materiaux: | Aluminium
High efficient polycarbonate satin cover |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | ØA = 630 mm / ØB = 580 mm / C = 21 mm
ØA = 780 mm / ØB = 730 mm / C = 21 mm ØA = 1100 mm / ØB = 1050 mm / C = 21 mm ØA = 1450 mm / ØB = 1400 mm / C = 21 mm |
| Kleur – Couleur: | White / Black / Titan |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 20W / 25W / 35W / 46W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| RA-CRI: | >80 |
| Lumen: | 100 lm/W at 4000ºK
95 lm/W at 3000ºK |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver
230/50Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Connection for operation on 230V-50/60Hz with dimmer dali or 1-10VDC ballast
Special shapes and dimensions |
MORFI SMALL UP
Technische Fiche

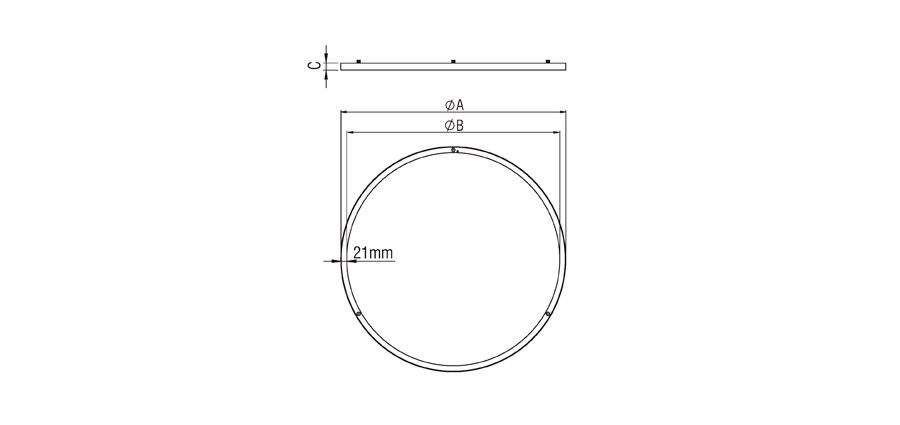

Technische tekening
