| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: |
Extruded Aluminium |
| Type: |
Opbouw / Apparent |
| Kleur – Couleur: |
Aluminium Anodized |
|
Diffuser – Diffuseur |
PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
17W / 34W / 51W / 68W / 85W / 102W / 119W / 136W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
17W: 1820 lm (3000°K) / 1910 lm (4000°K) 34W: 3640 lm (3000°K) / 3820 lm (4000°K) 51W: 5460 lm (3000°K) / 5730 lm (4000°K) 68W: 7280 lm (3000°K) / 7640 lm (4000°K) 85W: 9100 lm (3000°K) / 9550 lm (4000°K) 102W: 10920 lm (3000°K) / 11460 lm (4000°K) 119W: 12740 lm (3000°K) / 13370 lm (4000°K) 136W: 14560 lm (3000°K) / 15280 lm (4000°K) |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (optie / option) |
| Voeding – Alimentation: | 220/240V AC |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI / 1 – 10 V DIM |
The Line SD
Technische Fiche

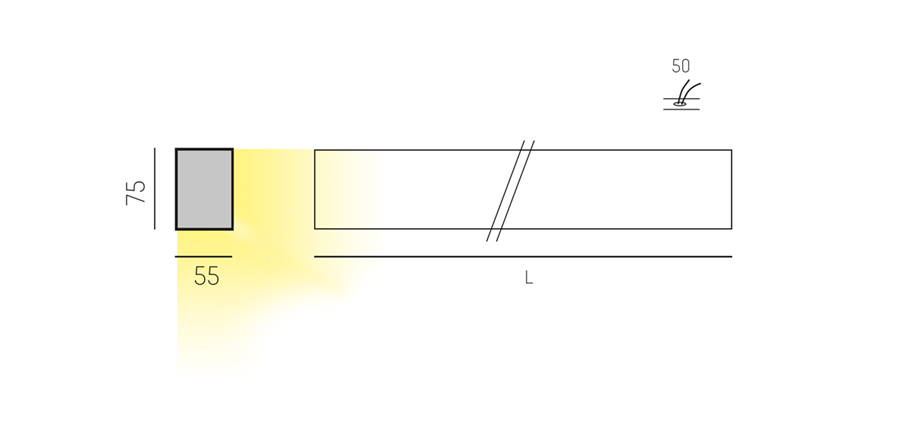

Technische tekening
