Talles 90 SQ

Talles 90 SQ
Talles 90 SQ

Fiche technique

Merk – Marque: Climar
Materiaal – Materiaux: Epoxy-polyester powder coated aluminium frame
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: 90x90x65mm
Kleur – Couleur: Matt White / Matt Black
Diffuser – Diffuseur Opal Polycarbonate
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 5W / 7W
Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen: 5W:

358 lm (3000°K) / 373 lm (3500°K)



7W:

501 lm (3000°K) / 522 lm (3500°K)



Lamp GU5.3/GU10 max. 50W

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED external driver



-ON/OFF

Power Supply 1-5W IP20 150mA

Power Supply 1-7W IP20 200mA



-DALI

Power Supply 3-5W IP20 150mA

Power Supply 4-7W IP20 200mA

Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP20 / IK04 / IP44 (Optic)
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DSI / 1-10V Dimm / Phase-Cut



CRI>90



2700ºK / 5000ºK / 6500ºK

RGB / RGBW



Bluetooth Control System



Emergency: 1 h / 3 h – DALI 1 h / 3 h



Sensors: Motion / Ambient Light / Motion & Ambient Light

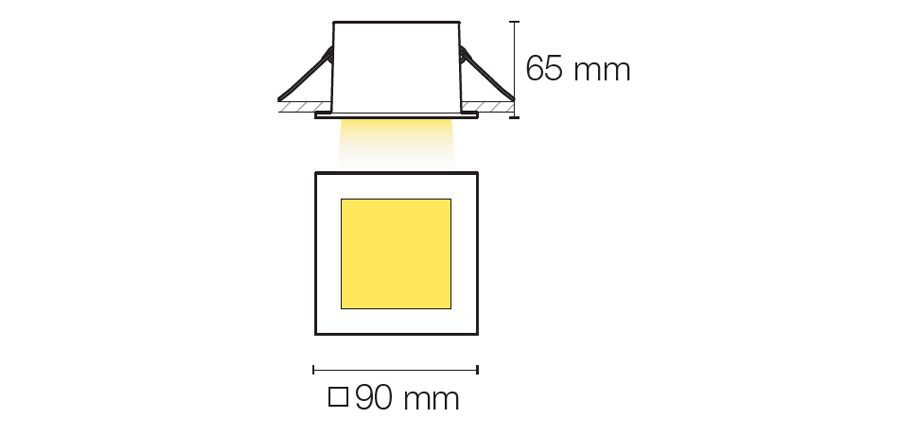

Dessin technique

Talles 90 SQ

Talles 90 SQ Talles 90 SQ

Fiche technique

Merk – Marque: Climar
Materiaal – Materiaux: Epoxy-polyester powder coated aluminium frame
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: 90x90x65mm
Kleur – Couleur: Matt White / Matt Black
Diffuser – Diffuseur Opal Polycarbonate
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 5W / 7W
Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen: 5W:

358 lm (3000°K) / 373 lm (3500°K)



7W:

501 lm (3000°K) / 522 lm (3500°K)



Lamp GU5.3/GU10 max. 50W

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED external driver



-ON/OFF

Power Supply 1-5W IP20 150mA

Power Supply 1-7W IP20 200mA



-DALI

Power Supply 3-5W IP20 150mA

Power Supply 4-7W IP20 200mA

Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP20 / IK04 / IP44 (Optic)
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DSI / 1-10V Dimm / Phase-Cut



CRI>90



2700ºK / 5000ºK / 6500ºK

RGB / RGBW



Bluetooth Control System



Emergency: 1 h / 3 h – DALI 1 h / 3 h



Sensors: Motion / Ambient Light / Motion & Ambient Light

Dessin technique
