| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Die cast Aluminium |
| Type: | Inbouw richtbaar 355° – 30° / Encastré orientable 355° – 30° |
| Afmetingen armatuur – Dimensions armature: | 175x175x140mm |
| Inbouwafmetingen – Dimensions d’encastrement: | 155x155mm |
| Kleur – Couleur: | Wit-Blanc / Zwart-Noir |
| Reflector – Reflecteur: | Alu 99,98 |
| Diffuser – Diffuseur | Transparant glas – Verre Transparent |
| Bundel – Faisceau: | Spot: 16°
Medium: 24° Flood: 40° |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 12W / 17W / 24W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | 1460 – 1740 lm
2030 – 2410 lm 2730 – 3240 lm |
| RA – CRI: | PREMIUM >90 (2700°K & 3000ºK)
>90 (4000°K) |
| Voeding – Alimentation: | 220-240 AC 50/60 Hz
350mA / 500mA / 700mA |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off / DALI / Casambi |
Savo 20 Square R
Technische Fiche

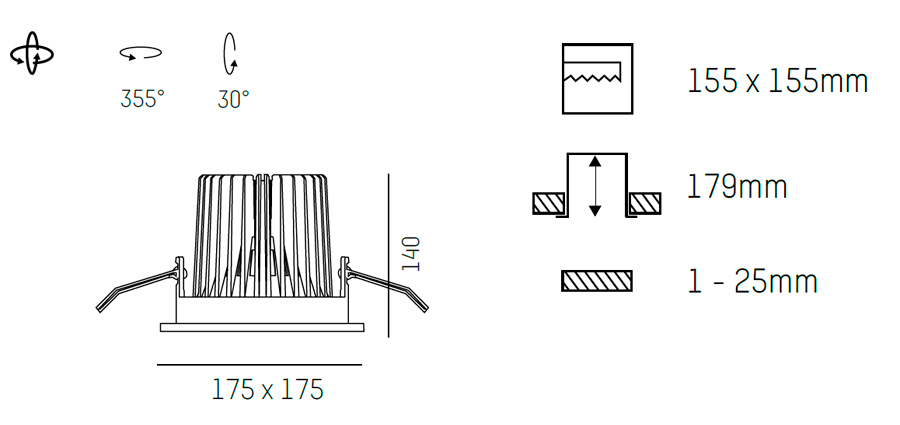

Technische tekening
