| Merk – Marque: | Nobile |
| Materiaal – Materiaux: | Painted Aluminium |
| Type: | Inbouw / Encastré |
| Afmetingen armatuur – Dimensions armature: | Ø110x79mm |
| Kleur – Couleur: | Matt White / Matt Black / Silver Matt |
| Bundel – Faisceau: | 30º / 50º |
| Uitrusting – Equipement: | COB LED |
| Systeemvermogen – Puissance de système: | 9W / 13W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 9W:
30º: 935 lm (3000°K) / 1020 lm (4000°K) 50º: 764 lm (3000°K) / 834 lm (4000°K)
13W: 30º: 1275 lm (3000°K) / 1360 lm (4000°K) 50º: 1042 lm (3000°K) / 1112 lm (4000°K) |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (inclu.) |
| Voeding – Alimentation: | 220-240V – 50/60Hz |
| Bescherming – Protection: | IP20 / IP54 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off / DALI / 1-10V / Triac driver |
COMBO C1R
Technische Fiche

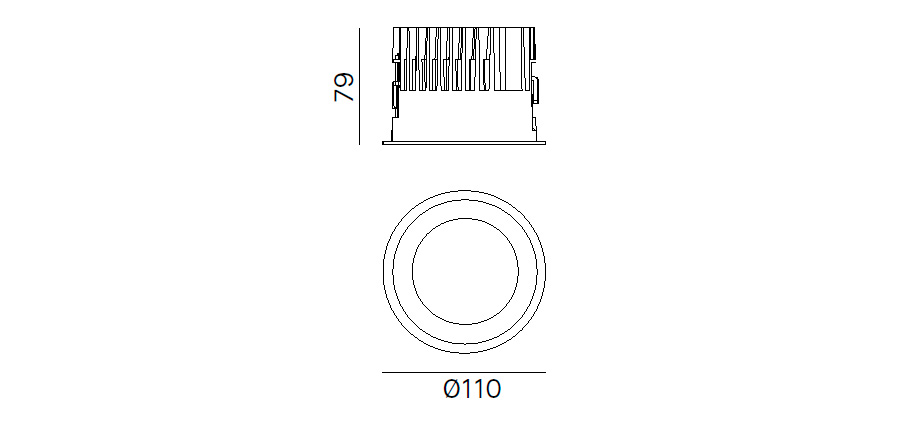

Technische tekening
