| Merk – Marque: | Nobile |
| Materiaal – Materiaux: | Galvanized steel and Aluminium |
| Type: | Inbouw / Encastré
Pendel / Suspension Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 395x1195x25mm |
| Kleur – Couleur: | White |
| Bundel – Faisceau: | 90° |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 36W / 38W / 40W / 42W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 36W
6150 lm (3000°K) / 3265 lm (4000°K) 38W 3310 lm (3000°K) / 3425 lm (4000°K) 40W 3480 lm (3000°K) / 3602 lm (4000°K) 42W 3650 lm (3000°K) / 3779 lm (4000°K) |
| RA – CRI: | >90 |
| UGR: | <16 |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP20 / IP44 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off / Push / Dim 1-10V / Wi-Fi Zigbee / Bluetooth
Kit for semi-recessed installation. Suspended installation kit. Plasterboard frame / White embossed aluminium structure for ceiling installation. White painted brackets for 300x1200mm mounting on 3 phase track. |
LTP312
Technische Fiche

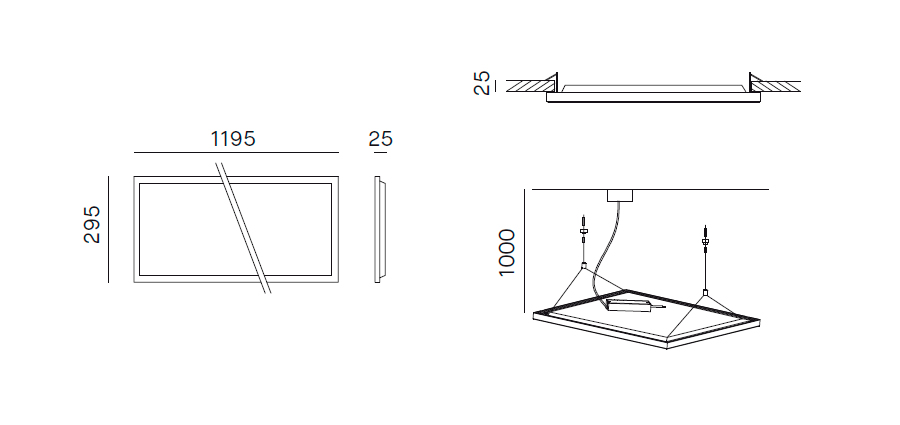

Technische tekening
