| Merk – Marque: | Climar Essence |
| Materiaal – Matxeriaux: | Aluminium |
| Type: | Inbouw Richtbaar 30º / Encastré Orientable 30º |
| Afmetingen armatuur – Dimensions armature: | Ø184x74mm |
| Kleur – Couleur: | Matt White |
| Bundel – Faisceau: | 15º / 24º / 40º / 60º |
| Uitrusting – Equipement: | LED Modules |
| Systeemvermogen – Puissance de système: | 29W / 42W
20W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: |
3000°K 15º 2700 lm (29W) 24º 2760 lm (29W) / 4550 lm (42W) 40º 2650 lm (29W) / 4340 lm (42W) 60º 4240 lm (42W)
4000°K 3000°K 15º 2830 lm (29W) 24º 2900 lm (29W) / 4780 lm (42W) 40º 2780 lm (29W) / 4560 lm (42W) 60º 4450 lm (42W)
2700°K 1730 lm (15º) / 1770 lm (24º) / 1700 lm (40º) 3000°K 1840 lm (15º) / 1880 lm (24º) / 1800 lm (40º) 4000°K 1940 lm (15º) / 1990 lm (24º) / 1910 lm (40º) |
| RA-CRI: | >80 / >90 (Only 20W) |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP20 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off / DALI
External |
Sirius Recessed Round
Technische Fiche

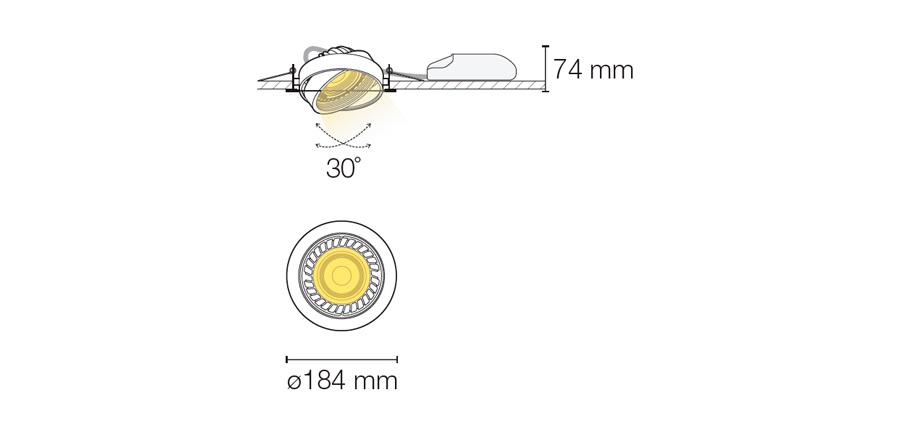

Technische tekening
