| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | Lx24x85 mm
L = 774 mm, 1160 mm, 1543 mm |
| Kleur – Couleur: | Txt white / Aluminium grey txt / Txt black
Light bronze / Iron grey / Olive grey |
| Uitrusting – Equipement: | LED |
| Emission: | Direct / Indirect / Direct&Indirect / Vacuu, module |
| Kelvin graden – Degré Kelvin: | 2700ºK / 3000ºK / 3500º / 4000ºK |
| Diffuser – Diffuseur: | Down optics:
35º / 53º / 70º / 83º
Up optics: Diffuse / Batwing |
| Lumen: | 500 lm / 700 lm / 1000 lm
1300 lm / 2000 lm / 3500 lm 4000 lm / 5000 lm / 5500 lm |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Voeding: | 220-240V~/50-60Hz |
| Bescherming – Protection: | IP20 / IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off / DALI / Push / Casambi
CRI92 / CRI98 |
Superlinea Ceiling
Technische Fiche

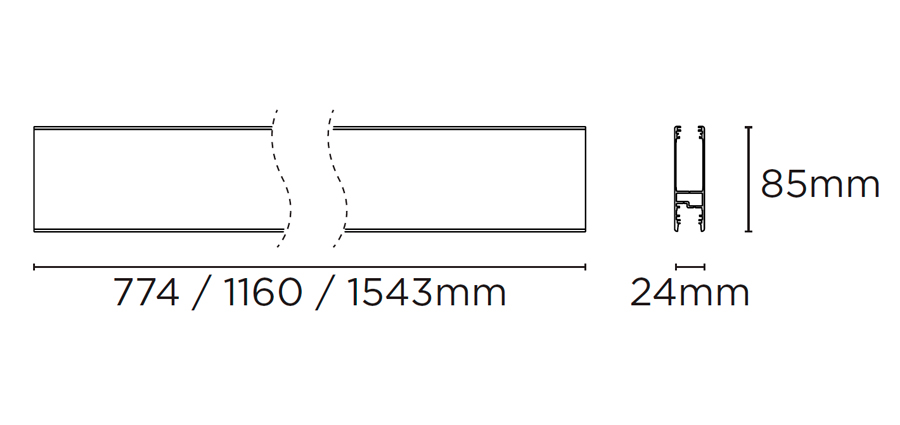

Technische tekening
