| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel – Suspension |
| Afmetingen armatuur – Dimensions armature: | Ø800x150mm / Ø1000x150mm
Ø1200x150mm / Ø1500x150mm |
| Kleur – Couleur: | Matt Black / Matt White |
| Diffuser – Diffuseur | Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 61W / 78W / 95W / 121W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 70% Direct and 30% Indirect
61W: 5712 lm (3000°K ) / 5980 lm (4000°K) 78W: 7510 lm (3000°K ) / 7862 lm (4000°K) 95W: 9179 lm (3000°K ) / 9610 lm (4000°K) 121W: 11705 lm (3000°K ) / 12254 lm (4000°K) |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700ºK / 5000ºK / 6500ºK |
BOYA 150 UP&DOWN
Technische Fiche

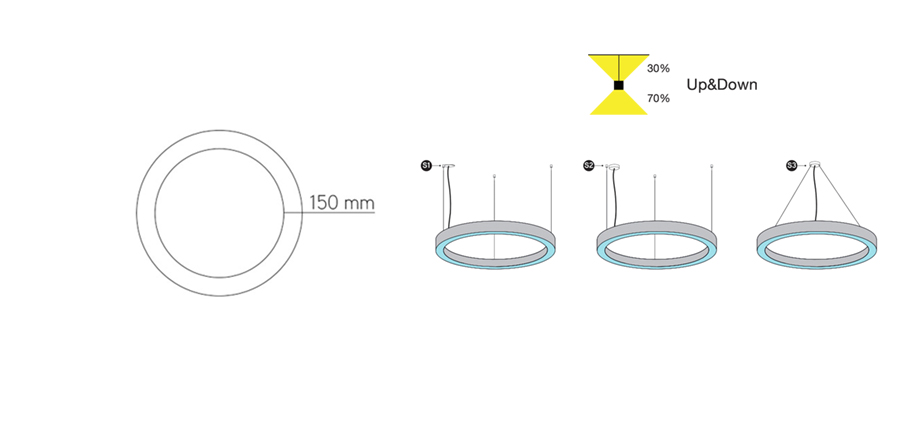

Technische tekening
