| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: |
Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: |
33x78xC mm C = 857mm / C = 1138mm C = 1419mm / C = 2262mm C = 2543mm / Corner = 600x600mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur: | Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
18W / 24W / 30W 48W / 54W / 24W (Corner) |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
18W: 1593lm (3000 °K ) / 1666lm (4000°K) 24W: 2124lm (3000 °K ) / 2222lm (4000°K) 30W: 2655lm (3000 °K ) / 2777lm (4000°K) 48W: 4248lm (3000 °K ) / 4443lm (4000°K) 54W: 4779lm (3000 °K ) / 4998lm (4000°K) 24W: 2124lm (3000 °K ) / 2222lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voeding – Alimentation: | 230V / 50Hz |
| Bescherming – Protection: | IP20 / IP43 (Optic) / IK04 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
DALI / Push / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / DALI 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700K / 5000ºK / 6500ºK |
Gap Recessed
Technische Fiche

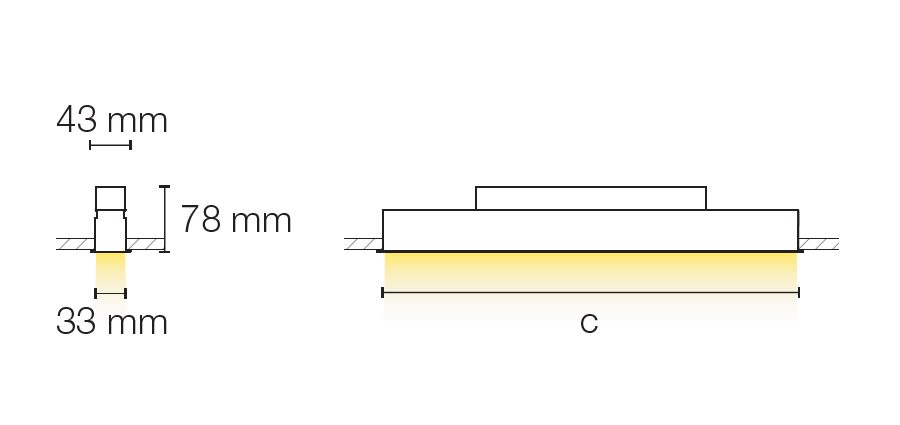

Technische tekening
