| Merk – Marque: | Castaldi |
| Materiaal – Materiaux: | Brake-formedelectrically welded steel plate |
| Type: |
Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: |
320x118x33mm |
| Kleur – Couleur: | Graphite Satin / Embossed White |
| Diffuser – Diffuseur: | Veiligheidsglas – Verre de sécurité |
| Bundel – Faisceau: |
Narrow Beam / Spot Beam / Dark / Oval Side / Asymmetric |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 15W |
| Kelvin graden – Degré Kelvin: |
3000°K / 4000°K |
| Lumen: |
Narrow Beam: 3000°K: 1572 lm / 4000°K: 1684 lm Spot Beam: 3000°K: 1572 lm / 4000°K: 1684 lm Dark: 3000°K: 1572 lm / 4000°K: 1684 lm Oval Side: 3000°K: 1520 lm / 4000°K: 1629 lm Asymmetric: 3000°K: 1520 lm / 4000°K: 2629 lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | Integral LED Driver |
| Voeding – Alimentation: | 220-240V & 50-60Hz |
| Bescherming – Protection: | IP65 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI IP65 (Only ON-OFF Version) |
Book Flat
Technische Fiche

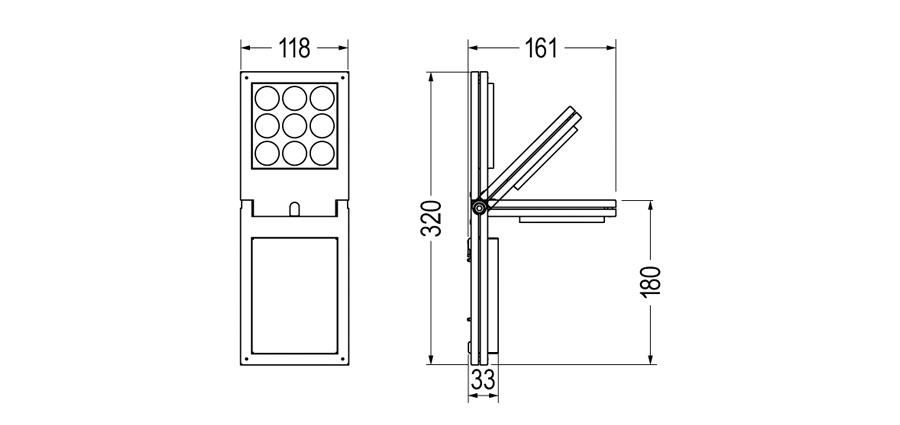

Technische tekening
