| Merk – Marque: | Climar |
| Materiaal – Materiaux: | UV resistant polyestar powder coated aluminium body with anti-corrosion surface treatment
Aluminium recessed housing |
| Type: | Inbouw Richtbaar 15º / Encastré Orientable 15º |
| Kleur – Couleur: | Fine brushed stainless steel |
| Diffuser – Diffuseur: | Clear Tempered Glass
PMMA Lens |
| Bundel – Faisceau: | 12º / 35º / 48º / 12ºx48º |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 30W / 42W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 30W:
12º: 3000°K: 1944 lm / 4000°K: 2320 lm 35º: 3000°K: 1837 lm / 4000°K: 2204 lm 48º: 3000°K:1745 lm / 4000°K: 2094 lm 12ºx48º: 3000°K: 1834 lm / 4000°K: 2201 lm
42W: 12º: 3000°K: 2706 lm / 4000°K: 3248 lm 35º: 3000°K: 2572 lm / 4000°K: 3086 lm 48º: 3000°K: 2443 lm / 4000°K: 2932 lm 12ºx48º: 3000°K: 2568 lm / 4000°K: 3081 lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230/50Hz 24 VDC |
| Bescherming – Protection: | IK10 / IP67 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off
Honeycomb Louvre – Glare control filter
2700ºK / 5000ºK / 6500ºK |
Lanin 260
Technische Fiche

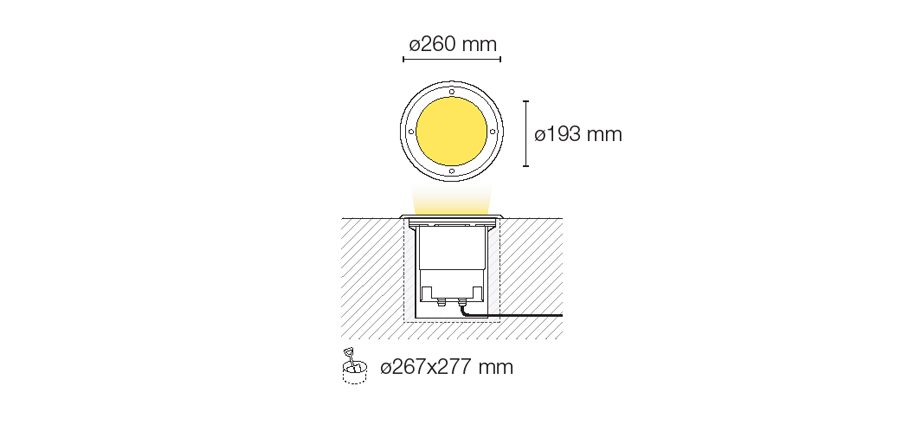

Technische tekening
