| Merk – Marque: | Castaldi Lighting |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: |
Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: |
Ø70x182mm |
| Kleur – Couleur: | Graphite Satin / Grey Aluminium |
| Diffuser – Diffuseur: | Veiligheidsglas – Verre de sécurité |
| Bundel – Faisceau: |
Narrow Beam (NB) / Medium Beam (MB) / Decorative |
| Uitrusting – Equipement: |
LED COB Down (1) / Up & Down (2) |
| Systeemvermogen – Puissance de système: |
6W / 10,6W |
| Kelvin graden – Degré Kelvin: |
3000°K / 4000°K |
| Lumen: |
1NB 6W 676 lm (4000ºK) / 649 lm (3000ºK) 10,6W 1098 lm (4000ºK) / 1054 lm (3000ºK)
1MB 6W 690 lm (4000ºK) / 669 lm (3000ºK) 10,6W 1120 lm (4000ºK) / 1086 lm (3000ºK)
2NB 10,6W 1117 lm (4000ºK) / 1073 lm (3000ºK)
2MB 10,6W 1140lm (4000ºK) / 1106 lm (3000ºK)
Decorative Up 140 lm (4000ºK) / 120 lm (3000ºK) Up&Down 279 lm (4000ºK) / 256 lm (3000ºK) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP65 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push |
Duetto T1
Technische Fiche

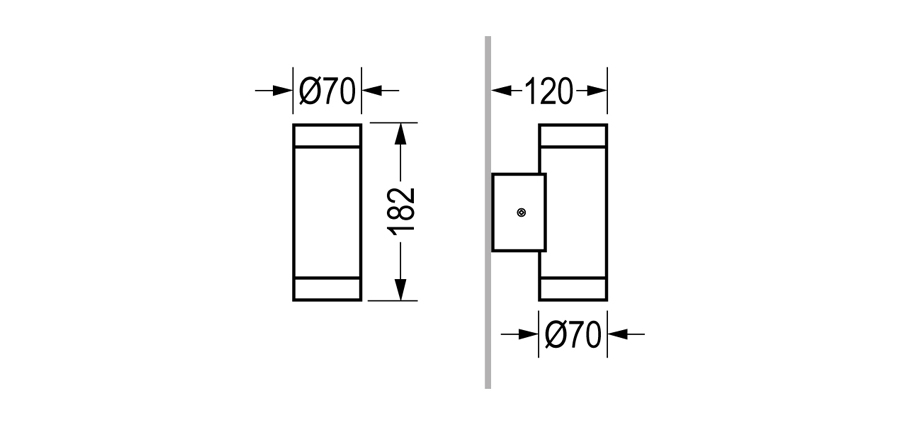

Technische tekening
