| Merk – Marque: | Climar |
| Materiaal – Materiaux: |
Aluminium Anti-corrosion surface treatment |
| Type: | Opbouw Richbaar 120° – 360° / Apparent Orientable 120° – 360° |
| Afmetingen armatuur – Dimensions armature: |
Ø30x72mm |
| Kleur – Couleur: | RAL 9005 Matt Black |
|
Bundel – Faisceau: |
12° / 35° / 48° |
|
Diffuser – Diffuseur |
PMMA |
| Diffuser – Diffuseur | Clear Tempered Glass |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 1W / 2W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
– 3000°K 1W: 88lm (12°) / 80lm (35°) / 76lm (48°) 2W: 157lm (12°) / 142lm (35°) / 186lm (48°)
– 4000°K 1W: 110lm (12°) / 100lm (35°) / 96lm (48°) 2W: 197lm (12°) / 178lm (35°) / 170lm (48°) |
| RA – CRI: | >80 |
| Voorschakelapp – Ballast: |
External LED driver 350mA / 700mA |
| Voeding – Alimentation: | 230V 50Hz |
| Bescherming – Protection: | IP65 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI Short & Long Spike RA-CRI: 2700°K / 5000°K / 6500°K |
Garden 30 Wall
Technische Fiche

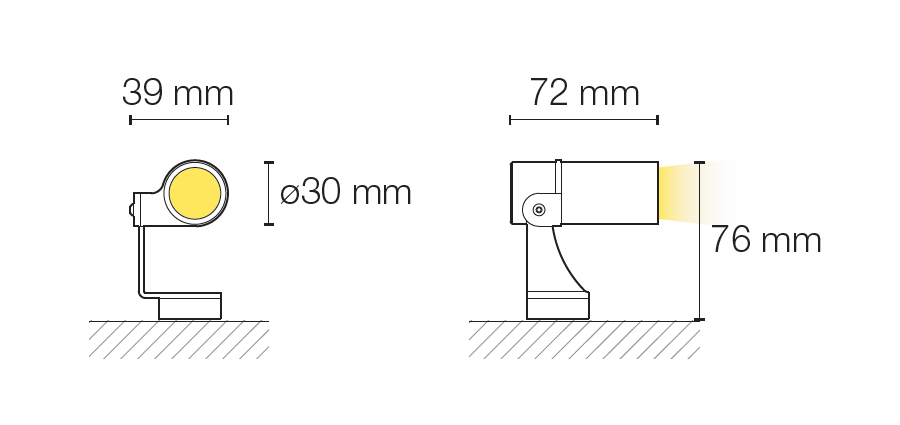

Technische tekening
