Talles 80 SQ

Talles 80 SQ
Talles 80 SQ

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Aluminium body with spring clips for tool free installation
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: 80x80x105mm
Kleur – Couleur: Matt White / Matt Black
Diffuser – Diffuseur: COB

Clear Glass Difusser (In IP44 & IP65 versions)

Bundel – Faisceau: 20° / 35° / 55°
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 5W / 7W / 8,7W
Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen: -IP20

5W:

508 lm (20°) / 552 lm (35°) / 567 lm (55°)



7W:

620 lm (20°) / 674 lm (35°) / 794 lm (55°)



8,7W:

787 lm (20°) / 854 lm (35°) / 987 lm (55°)



-IP44 & IP65

5W:

472 lm (20°) / 514 lm (35°) / 540 lm (55°)



7W:

576 lm (20°) / 626 lm (35°) / 757 lm (55°)



8,7W:

732 lm (20°) / 794 lm (35°) / 940 lm (55°)



Lamp GU5.3/GU10 max. 50W

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED external driver



-ON/OFF

Power Supply 1-5W IP20 150mA

Power Supply 1-7W IP20 200mA

Power Supply 1-9W IP20 250mA



-DALI

Power Supply 3-5W IP20 150mA

Power Supply 4-7W IP20 200mA

Power Supply 5-9W IP20 250mA

Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP20 / IP44 / IP65
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DSI / 1-10V Dimm / Phase-Cut



CRI>90



2700ºK



Bluetooth Control System



Emergency: 1 h / 3 h – DALI 1 h / 3 h



Sensors: Motion / Ambient Light / Motion & Ambient Light

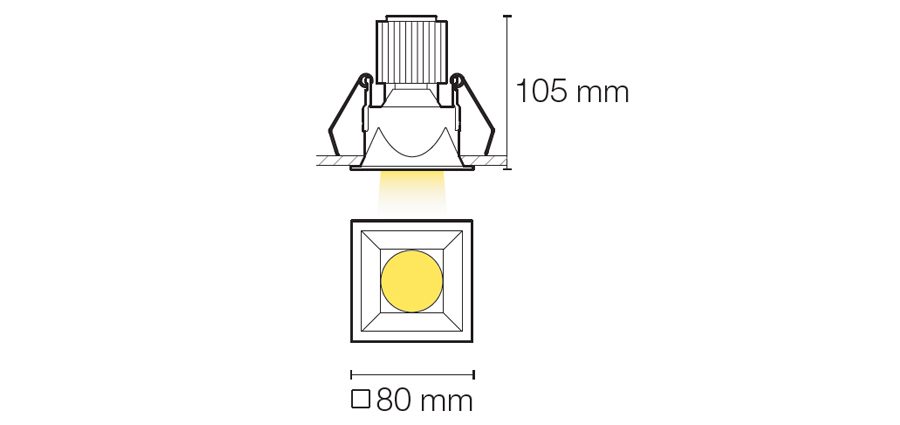

Technische tekening

Talles 80 SQ

Talles 80 SQ Talles 80 SQ

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Aluminium body with spring clips for tool free installation
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: 80x80x105mm
Kleur – Couleur: Matt White / Matt Black
Diffuser – Diffuseur: COB

Clear Glass Difusser (In IP44 & IP65 versions)

Bundel – Faisceau: 20° / 35° / 55°
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 5W / 7W / 8,7W
Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen: -IP20

5W:

508 lm (20°) / 552 lm (35°) / 567 lm (55°)



7W:

620 lm (20°) / 674 lm (35°) / 794 lm (55°)



8,7W:

787 lm (20°) / 854 lm (35°) / 987 lm (55°)



-IP44 & IP65

5W:

472 lm (20°) / 514 lm (35°) / 540 lm (55°)



7W:

576 lm (20°) / 626 lm (35°) / 757 lm (55°)



8,7W:

732 lm (20°) / 794 lm (35°) / 940 lm (55°)



Lamp GU5.3/GU10 max. 50W

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED external driver



-ON/OFF

Power Supply 1-5W IP20 150mA

Power Supply 1-7W IP20 200mA

Power Supply 1-9W IP20 250mA



-DALI

Power Supply 3-5W IP20 150mA

Power Supply 4-7W IP20 200mA

Power Supply 5-9W IP20 250mA

Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP20 / IP44 / IP65
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DSI / 1-10V Dimm / Phase-Cut



CRI>90



2700ºK



Bluetooth Control System



Emergency: 1 h / 3 h – DALI 1 h / 3 h



Sensors: Motion / Ambient Light / Motion & Ambient Light

Technische tekening
