Technische Fiche

Merk – Marque: Molto Luce
Materiaal – Materiaux: Aluminium
Type: Inbouw / Encastré
Afmetingen armatuur – Dimensions armature: 92x119xLmm
Kleur – Couleur: Zwart-Noir / Wit-Blanc / Aluminium Anodized

Insert: Zwart-Noir / Wit-Blanc

Diffuser – Diffuseur PMMA Opal
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: High Efficiency

12W (L = 866 mm) / 16W (L= 1147 mm) / 20W (L= 1427 mm)

32W (L= 2271 mm) / 40W (L= 2832 mm) / 48W (L= 3395 mm)

60W (L= 4236 mm)



High Output

24W (L = 866 mm) / 31W (L= 1147 mm) / 40W (L= 1417 mm)

62W (L= 2271 mm) / 80W (L= 2832 mm) / 93W (L= 3395 mm)

120W (L= 4236 mm)

Inbouwafmetingen – Dimensions d’encastrement: 856x80mm / 1137x80mm / 1417x80mm / 2261x80mm

2822x80mm / 3385x80mm  / 4226x80mm

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: Direct Beam



High Efficiency

12W:

Wit-Blanc: 1490 lm (2700°K) / 1530 lm (3000°K) / 1600 lm (4000°K)

Zwart-Noir: 1130 lm (2700°K) / 1170 lm (3000°K) / 1220 lm (4000°K)



16W:

Wit-Blanc: 1990 lm (2700°K) / 2040 lm (3000°K) / 2140 lm (4000°K)

Zwart-Noir: 1510 lm (2700°K) / 1560 lm (3000°K) / 1630 lm (4000°K)



20W:

Wit-Blanc: 2490 lm (2700°K) / 2550 lm (3000°K) / 2670 lm (4000°K)

Zwart-Noir: 1890 lm (2700°K) / 1950 lm (3000°K) / 2040 lm (4000°K)



32W:

Wit-Blanc: 3980 lm (2700°K) / 4080 lm (3000°K) / 4280 lm (4000°K)

Zwart-Noir: 3020 lm (2700°K) / 3120 lm (3000°K) / 3260 lm (4000°K)



40W:

Wit-Blanc: 4980 lm (2700°K) / 5100 lm (3000°K) / 5340 lm (4000°K)

Zwart-Noir: 3780 lm (2700°K) / 3900 lm (3000°K) / 4080 lm (4000°K)



48W:

Wit-Blanc: 5970 lm (2700°K) / 6120 lm (3000°K) / 6420 lm (4000°K)

Zwart-Noir: 4530 lm (2700°K) / 4680 lm (3000°K) / 4890 lm (4000°K)



60W:

Wit-Blanc: 7470 lm (2700°K) / 7650 lm (3000°K) / 8010 lm (4000°K)

Zwart-Noir: 5670 lm (2700°K) / 5850 lm (3000°K) / 6120 lm (4000°K)



High Output

24W:

Wit-Blanc: 2870 lm (2700°K) / 2950 lm (3000°K) / 3090 lm (4000°K)

Zwart-Noir: 2190 lm (2700°K) / 2250 lm (3000°K) / 2350 lm (4000°K)



31W:

Wit-Blanc: 3830 lm (2700°K) / 3940 lm (3000°K) / 4120 lm (4000°K)

Zwart-Noir: 2920 lm (2700°K) / 3000 lm (3000°K) / 3140 lm (4000°K)



40W:

Wit-Blanc: 4790 lm (2700°K) / 4820 lm (3000°K) / 5150 lm (4000°K)

Zwart-Noir: 3650 lm (2700°K) / 3750 lm (3000°K) / 3920 lm (4000°K)



62W:

Wit-Blanc: 7660 lm (2700°K) / 7880 lm (3000°K) / 8240 lm (4000°K)

Zwart-Noir: 5840 lm (2700°K) / 6000 lm (3000°K) / 6280 lm (4000°K)



80W:

Wit-Blanc: 9580 lm (2700°K) / 9840 lm (3000°K) / 10300 lm (4000°K)

Zwart-Noir: 7300 lm (2700°K) / 7500 lm (3000°K) / 7840 lm (4000°K)



93W:

Wit-Blanc: 11490 lm (2700°K) / 11820 lm (3000°K) / 12360 lm (4000°K)

Zwart-Noir: 8760 lm (2700°K) / 9000 lm (3000°K) / 9420 lm (4000°K)



120W:

Wit-Blanc: 14370 lm (2700°K) / 14760 lm (3000°K) / 15450 lm (4000°K)

Zwart-Noir: 10950 lm (2700°K) / 11250 lm (3000°K) / 11760 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V AC/DC
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option Analog Dim 1-10V / DALI / Push

UGR<19 in Microprismatic & High Efficiency Version

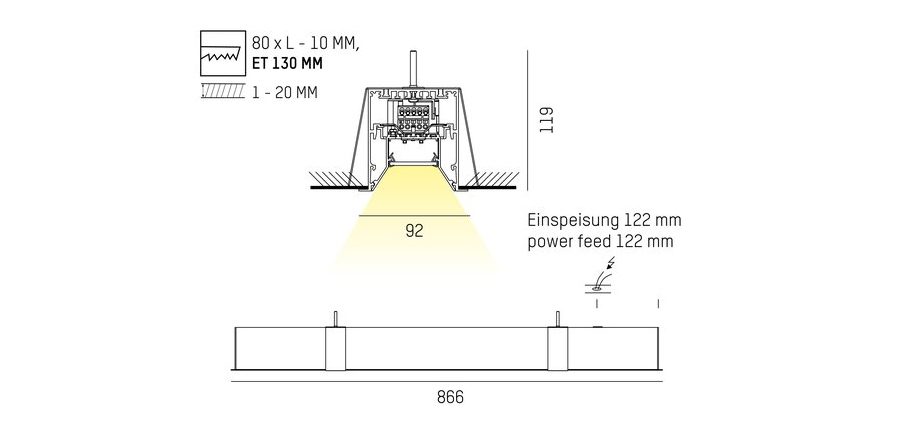

Technische tekening</
