Log 50 Spot R

Log 50 Spot R
Log 50 Spot R

Technische Fiche

Merk – Marque: Molto Luce
Materiaal – Materiaux: Aluminium
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: 64x95xLmm

L = 858 mm / L = 1139 mm / L = 1419 mm

L = 1700 mm / L = 2261 mm / L = 2541 mm

L = 2822 mm / L = 3383 mm / L = 4224 mm

Kleur – Couleur: Zwart-Noir / Wit-Blanc / Silver
Reflector – Reflecteur: Chrome / Dark Chrome
Bundel – Faisceau: 24º / 38º
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 18W – 3 spots

23W – 4 spots

28W – 5 spots

36W – 6 spots

46W – 8 spots

54W – 9 spots

56W – 10 spots

69W – 12 spots

84W – 15 spots

Kelvin graden – Degré Kelvin: 2700ºK / 3000°K /  4000°K
Lumen: 18W

-Reflector Chrome

24º

1520 lm (2700°K) / 1660 lm (3000°K) / 1880 lm (4000°K)

38º

1410 lm (2700°K) / 1530 lm (3000°K) / 1740 lm (4000°K)

-Reflector Dark Chrome

24º

820 lm (2700°K) / 890 lm (3000°K) / 1010 lm (4000°K)

38º

800 lm (2700°K) / 870 lm (3000°K) / 990 lm (4000°K)



23W

-Reflector Chrome

24º

1900 lm (2700°K) / 2060 lm (3000°K) / 2330 lm (4000°K)

38º

1760 lm (2700°K) / 1910 lm (3000°K) / 2170 lm (4000°K)

-Reflector Dark Chrome

24º

1020 lm (2700°K) / 1110 lm (3000°K) / 1250 lm (4000°K)

38º

1000 lm (2700°K) / 1080 lm (3000°K) / 1230 lm (4000°K)



28W

-Reflector Chrome

24º

2370 lm (2700°K) / 2580 lm (3000°K) / 2920 lm (4000°K)

38º

2200 lm (2700°K) / 2390 lm (3000°K) / 2710 lm (4000°K)

-Reflector Dark Chrome

24º

1270 lm (2700°K) / 1380 lm (3000°K) / 1570 lm (4000°K)

38º

1250 lm (2700°K) / 1360 lm (3000°K) / 1540 lm (4000°K)



36W

-Reflector Chrome

24º

3040 lm (2700°K) / 3320 lm (3000°K) / 3760 lm (4000°K)

38º

2820 lm (2700°K) / 3060 lm (3000°K) / 3480 lm (4000°K)

-Reflector Dark Chrome

24º

1640 lm (2700°K) / 1780 lm (3000°K) / 2020 lm (4000°K)

38º

1600 lm (2700°K) / 1740 lm (3000°K) / 1980 lm (4000°K)



46W

-Reflector Chrome

24º

3800 lm (2700°K) / 4120 lm (3000°K) / 4660 lm (4000°K)

38º

3520 lm (2700°K) / 3820 lm (3000°K) / 4340 lm (4000°K)

-Reflector Dark Chrome

24º

2040 lm (2700°K) / 2220 lm (3000°K) / 2500 lm (4000°K)

38º

2000 lm (2700°K) / 2160 lm (3000°K) / 2460 lm (4000°K)



54W

-Reflector Chrome

24º

4560 lm (2700°K) / 4980 lm (3000°K) / 5640 lm (4000°K)

38º

4230 lm (2700°K) / 4590 lm (3000°K) / 5220 lm (4000°K)

-Reflector Dark Chrome

24º

2460 lm (2700°K) / 2670 lm (3000°K) / 3030 lm (4000°K)

38º

2400 lm (2700°K) / 2610 lm (3000°K) / 2970 lm (4000°K)



56W

-Reflector Chrome

24º

4740 lm (2700°K) / 5160 lm (3000°K) / 5840 lm (4000°K)

38º

4400 lm (2700°K) / 4780 lm (3000°K) / 5420 lm (4000°K)

-Reflector Dark Chrome

24º

2540 lm (2700°K) / 2760 lm (3000°K) / 3140 lm (4000°K)

38º

2500 lm (2700°K) / 2720 lm (3000°K) / 3080 lm (4000°K)



69W

-Reflector Chrome

24º

5700lm (2700°K) / 6180 lm (3000°K) / 6990 lm (4000°K)

38º

5280 lm (2700°K) / 5730 lm (3000°K) / 6510 lm (4000°K)

-Reflector Dark Chrome

24º

3060 lm (2700°K) / 3330 lm (3000°K) / 3750 lm (4000°K)

38º

3000 lm (2700°K) / 3240 lm (3000°K) / 3690 lm (4000°K)



84W

-Reflector Chrome

24º

7110 lm (2700°K) / 7740 lm (3000°K) / 8760 lm (4000°K)

38º

6600 lm (2700°K) / 7170 lm (3000°K) / 8130 lm (4000°K)

-Reflector Dark Chrome

24º

3810 lm (2700°K) / 4140 lm (3000°K) / 4710 lm (4000°K)

38º

3750 lm (2700°K) / 4080 lm (3000°K) / 4620 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V AC 50/60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DALI / On-Off

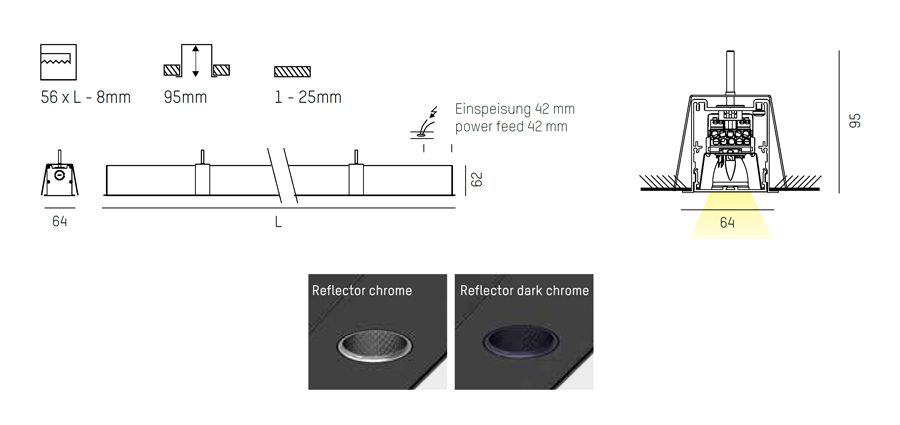

Technische tekening
