| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable
Richtbaar-Orientable: 355° Horizontal-Horizontaal / 30° Vertical-Verticaal |
| Afmetingen armatuur – Dimensions armature: | Ø125x93mm |
| Inbouwafmetingen – Dimensions d’encastrement: | Ø112mm |
| Kleur – Couleur: | Wit-Blanc / Zwart-Noir / Silver |
| Reflector – Reflecteur: | Alu 99,98 |
| Diffuser – Diffuseur | Transparant glas – Verre Transparent |
| Bundel – Faisceau: | 17° / 29° / 40° |
| Uitrusting – Equipement: | COB LED |
| Systeemvermogen – Puissance de système: | 12W / 17W / 24W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: |
2700°K 1280 lm (12W) / 1770 lm (17W) / 2370lm (24W) 3000°K 1140 lm (12W) / 1990 lm (17W) / 2670 lm (24W) 4000°K 1570 lm (12W) / 2170 lm (17W) / 2910 lm (24W)
2700°K 1270 lm (12W) / 1760 lm (17W) / 2360 lm (24W) 3000°K 1430 lm (12W) / 1980 lm (17W) / 2660 lm (24W) 4000°K 1570 lm (12W) / 2160 lm (17W) / 2900 lm (24W)
2700°K 1280 lm (12W) / 1770 lm (17W) / 2510 lm (24W) 3000°K 1440 lm (12W) / 1990 lm (17W) / 2670 lm (24W) 4000°K 1580 lm (12W) / 2180 lm (17W) / 2920 lm (24W)
2700°K 1290 lm (12W) / 1780 lm (17W) / 2530 lm (24W) 3000°K 1450 lm (12W) / 2000 lm (17W) / 2690 lm (24W) 4000°K 1590 lm (12W) / 2190 lm (17W) / 2940 lm (24W) |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Push / DALI |
Only XS R
Technische Fiche

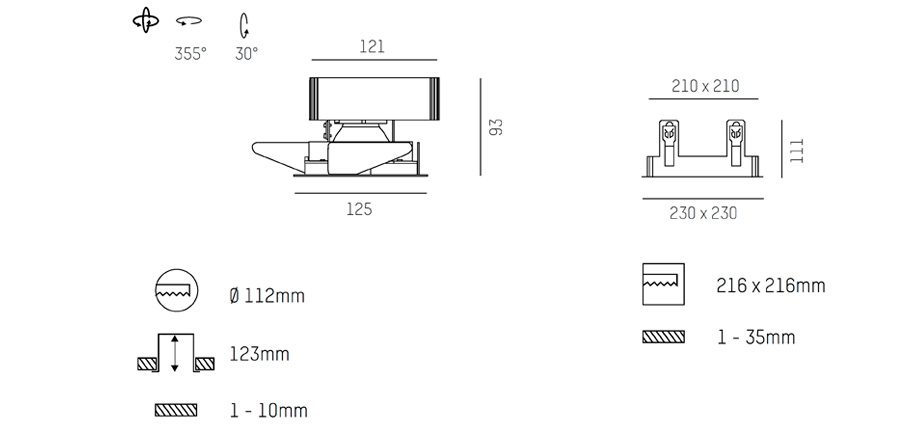

Technische tekening
