DARK FIX MEDIUM TRIMLESS

DARK FIX MEDIUM TRIMLESS
DARK FIX MEDIUM TRIMLESS

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Aluminium
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: Square: 95x95x96mm

Round: Ø64x98mm

Kleur – Couleur: Matt White txt / Matt Black txt / Concrete Grey

Copper txt / Gold txt

Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 12,8W & 17,3W & 16,9W & 11,8W & 12,1W & 4,1W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 3500°K / 4000°K
Bundel – Faisceau: Very Narrow Spot: 8° (8,2W)

Narrow Spot: 12° (12,8W)

Spot: 18° (17,3W)

Narrow Flood: 24° (17,3W)

Flood: 37° (17,3W)

Wide Flood: 51° (16,9W)

Elliptical Narrow Spot: 33,3° / 12,2°  (18,2W)

Elliptical Wide Flood: 67° / 44,8°  (16,9W)

Area washer (11,8W)

Grazing Washer (11,8W)

Flood LOW CONTRAST (12,1W)

Wide Flood LOW CONTRAST (4,1W)

Lumen: Very Narrow Spot:

521 lm

Narrow Spot:

1206 lm

Spot:

1611 lm

Narrow Flood:

1771 lm

Flood:

1791 lm

Wide Flood:

1703 lm

Elliptical Narrow Spot:

758 lm

Elliptical Wide Flood:

1205 lm

Area washer

597 lm

Grazing Washer

865 lm

Flood LOW CONTRAST

1159 lm

Wide Flood LOW CONTRAST

469 lm

 RA-CRI: >92 / >98
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
UGR: <13 / High confort <10
Optie – Option On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency

Honeycomb / Elliptical Lens

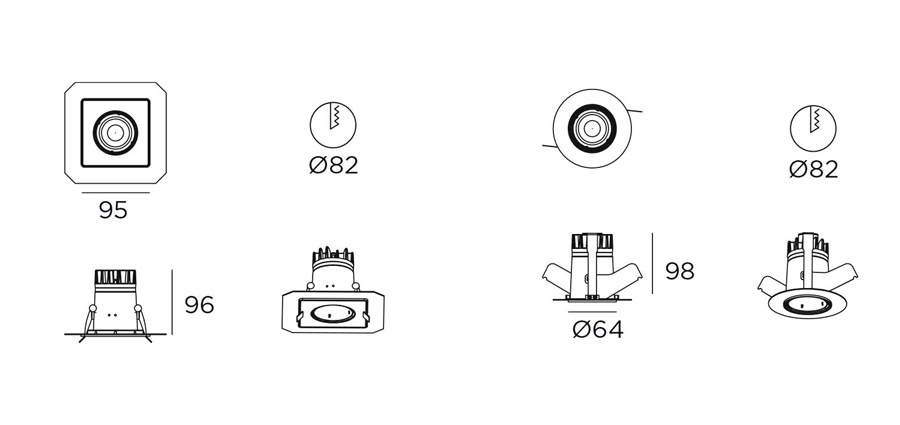

Technische tekening

DARK FIX MEDIUM TRIMLESS

DARK FIX MEDIUM TRIMLESS DARK FIX MEDIUM TRIMLESS

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Aluminium
Type: Inbouw vast / Encastré fixe
Afmetingen armatuur – Dimensions armature: Square: 95x95x96mm

Round: Ø64x98mm

Kleur – Couleur: Matt White txt / Matt Black txt / Concrete Grey

Copper txt / Gold txt

Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 12,8W & 17,3W & 16,9W & 11,8W & 12,1W & 4,1W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 3500°K / 4000°K
Bundel – Faisceau: Very Narrow Spot: 8° (8,2W)

Narrow Spot: 12° (12,8W)

Spot: 18° (17,3W)

Narrow Flood: 24° (17,3W)

Flood: 37° (17,3W)

Wide Flood: 51° (16,9W)

Elliptical Narrow Spot: 33,3° / 12,2°  (18,2W)

Elliptical Wide Flood: 67° / 44,8°  (16,9W)

Area washer (11,8W)

Grazing Washer (11,8W)

Flood LOW CONTRAST (12,1W)

Wide Flood LOW CONTRAST (4,1W)

Lumen: Very Narrow Spot:

521 lm

Narrow Spot:

1206 lm

Spot:

1611 lm

Narrow Flood:

1771 lm

Flood:

1791 lm

Wide Flood:

1703 lm

Elliptical Narrow Spot:

758 lm

Elliptical Wide Flood:

1205 lm

Area washer

597 lm

Grazing Washer

865 lm

Flood LOW CONTRAST

1159 lm

Wide Flood LOW CONTRAST

469 lm

 RA-CRI: >92 / >98
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
UGR: <13 / High confort <10
Optie – Option On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency

Honeycomb / Elliptical Lens

Technische tekening
