DARK TILT COMPACT

DARK TILT COMPACT
DARK TILT COMPACT

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Aluminium
Type: Inbouw Richtbaar / Encastré Orientable
Afmetingen armatuur – Dimensions armature: Square: 154x154x126mm

Round: Ø140x125mm

Kleur – Couleur: Matt White txt / Matt Black txt / Concrete Grey

Copper txt / Gold txt

Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 12,8W & 25,1W & 24,4W & 16,9W & 17,3W & 8,2W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 3500°K / 4000°K
Bundel – Faisceau: Very Narrow Spot: 6° (8,2W)

Narrow Spot: 9° (18,2W)

Spot: 14° (25,1W)

Narrow Flood: 23° (25,1W)

Flood: 35° (25,1W)

Wide Flood: 51° (24,4W)

Elliptical Narrow Spot: 10,3° / 34,4°  (18,2W)

Elliptical Wide Flood: 43,3° / 70,5°  (24,4W)

Area washer (16,9W)

Grazing Washer (16,8W)

Lumen: Very Narrow Spot:

539 lm

Narrow Spot:

1235 lm

Spot:

2128 lm

Narrow Flood:

2348 lm

Flood:

2343 lm

Wide Flood:

2246 lm

Elliptical Narrow Spot:

764 lm

Elliptical Wide Flood:

1609 lm

Area washer

903 lm

Grazing Washer

1100 lm

 RA-CRI: >92 / >98
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
UGR: <13 / High confort <10
Optie – Option On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency

Honeycomb / Elliptical Lens / Diffusing glass

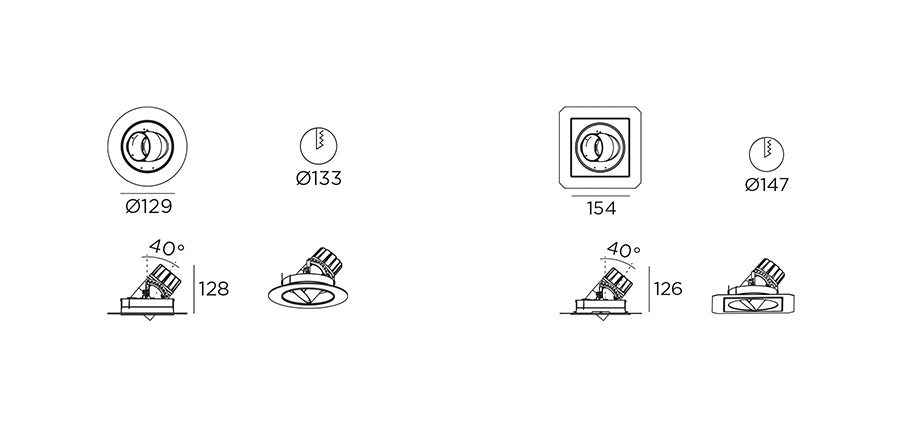

Technische tekening

DARK TILT COMPACT

DARK TILT COMPACT DARK TILT COMPACT

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Aluminium
Type: Inbouw Richtbaar / Encastré Orientable
Afmetingen armatuur – Dimensions armature: Square: 154x154x126mm

Round: Ø140x125mm

Kleur – Couleur: Matt White txt / Matt Black txt / Concrete Grey

Copper txt / Gold txt

Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 12,8W & 25,1W & 24,4W & 16,9W & 17,3W & 8,2W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 3500°K / 4000°K
Bundel – Faisceau: Very Narrow Spot: 6° (8,2W)

Narrow Spot: 9° (18,2W)

Spot: 14° (25,1W)

Narrow Flood: 23° (25,1W)

Flood: 35° (25,1W)

Wide Flood: 51° (24,4W)

Elliptical Narrow Spot: 10,3° / 34,4°  (18,2W)

Elliptical Wide Flood: 43,3° / 70,5°  (24,4W)

Area washer (16,9W)

Grazing Washer (16,8W)

Lumen: Very Narrow Spot:

539 lm

Narrow Spot:

1235 lm

Spot:

2128 lm

Narrow Flood:

2348 lm

Flood:

2343 lm

Wide Flood:

2246 lm

Elliptical Narrow Spot:

764 lm

Elliptical Wide Flood:

1609 lm

Area washer

903 lm

Grazing Washer

1100 lm

 RA-CRI: >92 / >98
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
UGR: <13 / High confort <10
Optie – Option On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency

Honeycomb / Elliptical Lens / Diffusing glass

Technische tekening
