| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | Square: 174x174x159mm
Round: Ø160x158mm |
| Kleur – Couleur: | Matt White txt / Matt Black txt / Concrete Grey
Copper txt / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 17,9W & 33,1W & 38,2W & 35,8W & 35,7W & 31,9W & 16,8W& 8,1W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Very Narrow Spot: 7° (17,9W)
Narrow Spot: 11° (33,1W) Spot: 14° (38,2W) Narrow Flood: 24° (35,8W) Flood: 35° (35,8W) Wide Flood: 52° (35,7W) Elliptical Narrow Spot: 10,7° / 31,6° (33,1W) Elliptical Wide Flood: 45,3° / 67,1° (35,7W) Area washer (31,9W) Grazing Washer (31,9W) |
| Lumen: | Very Narrow Spot:
1487 lm Narrow Spot: 2685 lm Spot: 3218 lm Narrow Flood: 3711 lm Flood: 3862 lm Wide Flood: 3992 lm Elliptical Narrow Spot: 1634 lm Elliptical Wide Flood: 2781 lm Area washer 2157 lm Grazing Washer 1862 lm |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <13 / High confort <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Honeycomb / Elliptical Lens / Diffusing glass |
DARK TILT MAX
Technische Fiche

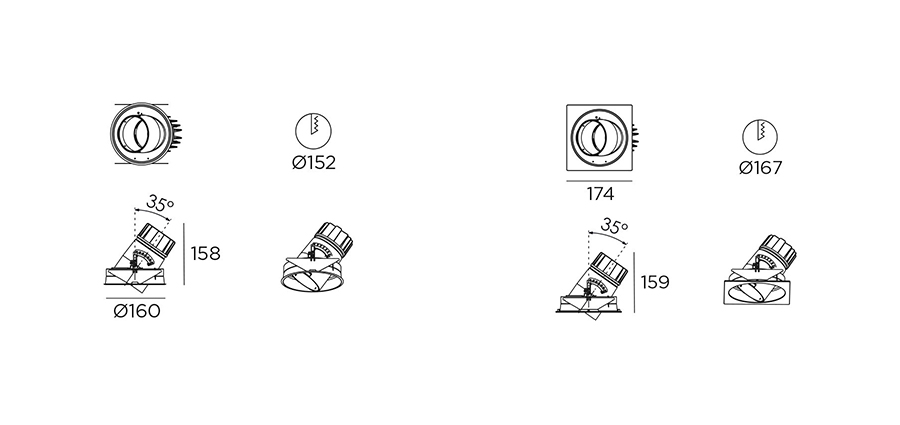

Technische tekening
