| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | 214x58x57mm |
| Kleur – Couleur: | Matt White txt / Matt Black txt / Concrete Grey
Copper txt / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 3,9W x 4 & 4,5W x 4 |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Narrow Spot: 13° (3,9W)
Elliptical Narrow Spot: 54,5° / 15,3° (3,9W) Spot: 17° (4,5W) Narrow Flood: 24° (4,5W) Flood: 48° (4,5W) |
| Lumen: | Narrow Spot:
277 x 4 lm (1108 lm) Spot: 369 x 4 lm (1476 lm) Narrow Flood: 381 x 4 lm (1527 lm) Flood: 391 x 4 lm (1556 lm) Elliptical Narrow Spot: 234 x 4 lm (938 lm) |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <13 / High confort <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Honeycomb |
DARK TILT MINI TRIMLESS 4x
Technische Fiche

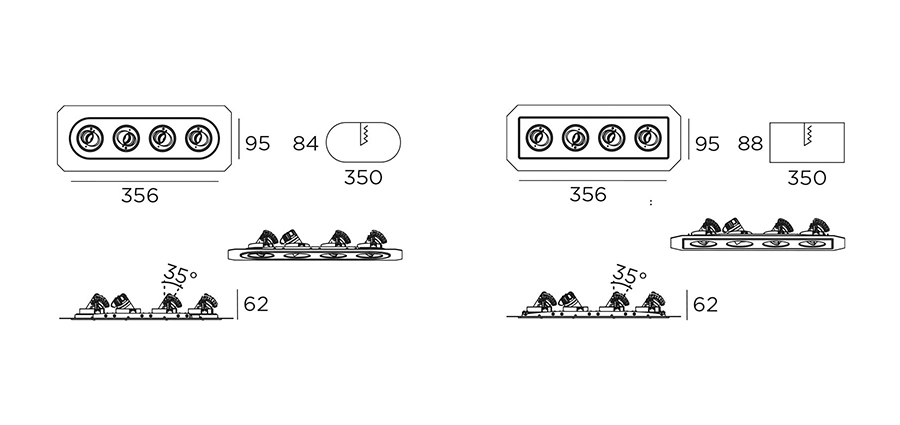

Technische tekening
