| Merk – Marque: | Climar Essence |
| Materiaal – Materiaux: | Sheet steel body with epoxy-polyester powder coating |
| Type: | Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: | 297x598mm / 297x1198mm / 297x1498mm / 595x595mm |
| Kleur – Couleur: | White |
| Bundel – Faisceau: | Opal PMMA |
| Uitrusting – Equipement: | T8 LED Modules
Led Tubes |
| Systeemvermogen – Puissance de système: | LED Modules
18W / 36W / 44W / 36W Led Tubes 2x10W MAX / 2x22W MAX / 2x24W MAX / 4x10W MAX |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | LED Modules
3000°K 2105 lm / 4211 lm / 5264 lm / 4252 lm 4000°K 2208 lm / 4415 lm / 5519 lm / 4458 lm
Led Tubes 2100 lm / 5000 lm / 7400 lm / 2870 lm |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP40 (Optic) / IP20 (Geral)
IK03 – Opal Diffuser |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off / DALI
Emergency Available in PCB LED versions and for use with T8 LED tubes (not included). |
Office-R Opal Recessed
Technische Fiche

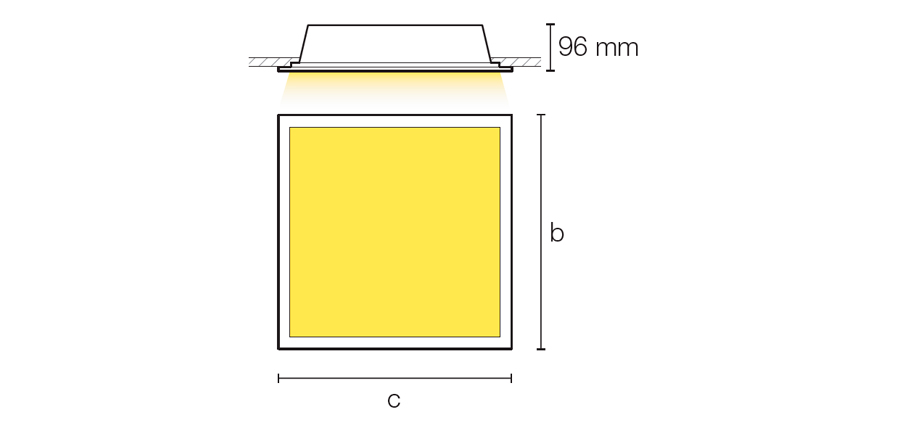

Technische tekening
