| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: | 217x64x88,8mm |
| Kleur – Couleur: | Matt White / Matt Black / Concrete Grey
Copper txt / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 4,5W x 4 |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Spot: 18°
Narrow Flood: 24° Flood: 35° Wide Flood: 48° |
| Lumen: | Spot:
430 x 4 lm (1718 lm) Narrow Flood: 430 x 4 lm (1721 lm) Flood: 414 x 4 lm (1654 lm) Wide Flood: 387 x 4 lm (1549 lm)
Spot / Black – High Confort 410 x 4 lm (1641 lm) Narrow Flood / Black – High Confort 413 x 4 lm (1651 lm) Flood / Black – High Confort 384 x 4 lm (1538 lm) Wide Flood / Black – High confort 372 x 4 lm (1488 lm) |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | Optical Housing: IP54
Internal Compartment: IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <13 / High confort <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Multi-optical version |
PIN REVO MINI SQUARE 4x
Technische Fiche

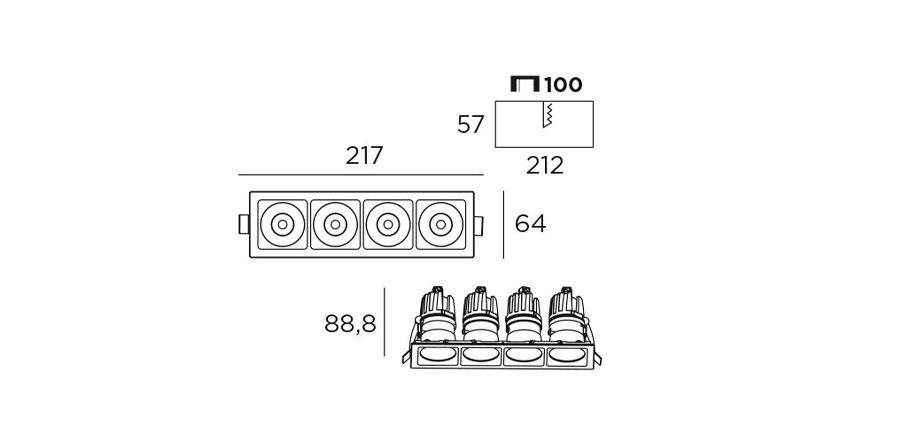

Technische tekening
