| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | Ø61x104mm |
| Kleur – Couleur: | Matt White txt / Matt Black txt / Concrete Grey
Copper gray / Mud brown / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 8,2W & 18,2W & 17,3W & 17W & 11,8W & 17,9W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Very Narrow Spot: 7,9° (8,2W)
Narrow Spot: 11,7° (18,2W) Spot: 17,9° (17,3W) Narrow Flood: 24,3° (17,3W) Flood: 36,7° (17,3W) Wide Flood: 50,6° (17W) Elliptical Narrow Spot: 33,3° / 12,2° (18,2W) Elliptical Wide Flood: 67° / 44,8° (17W) Deep Washer: (11,8W) Grazing Washer: (11,8W) Area Washer: (11,8W) |
| Lumen: | Very Narrow Spot:
522 lm Narrow Spot: 1207 lm Spot: 1594 lm Narrow Flood: 1772 lm Flood: 1791 lm Wide Flood: 1703 lm Elliptical Narrow Spot: 757 lm Elliptical Wide Flood: 1212 lm Deep Washer: 1073 lm Grazing Washer: 865 lm Area Washer: 597 lm |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Visor / Snoot / Honeycomb / Elliptical Lens / Protective Glass / Diffusing Lens / Primary Ring |
SPOT REVO MEDIUM
Technische Fiche

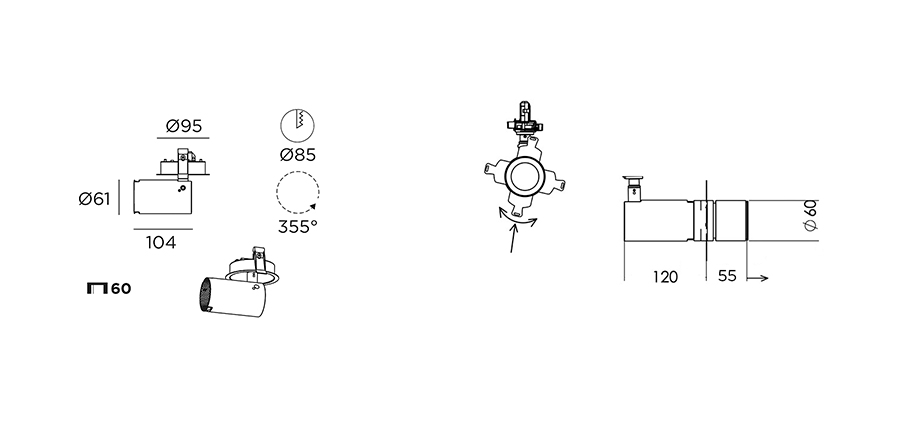

Technische tekening
