| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | Ø33x51mm |
| Kleur – Couleur: | Matt White txt / Matt Black txt / Concrete Grey
Copper gray / Mud brown / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 3W & 3,9W & 4,5W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Very Narrow Spot: 8,3° (3W)
Narrow Spot: 13,3° (3,9W) Flood: 33,6° (4,5W) Spot: 17,3° (4,5W) Narrow Flood: 23,9° (4,5W) Elliptical Narrow Spot: 54,5° / 15,3° (3,9W) |
| Lumen: | Very Narrow Spot:
228 lm Narrow Spot: 279 lm Flood: 392 lm Spot: 372 lm Narrow Flood: 383 lm Elliptical Narrow Spot: 238 lm |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Visor / Snoot / Honeycomb / Elliptical Lens |
SPOT REVO MINI 1X
Technische Fiche

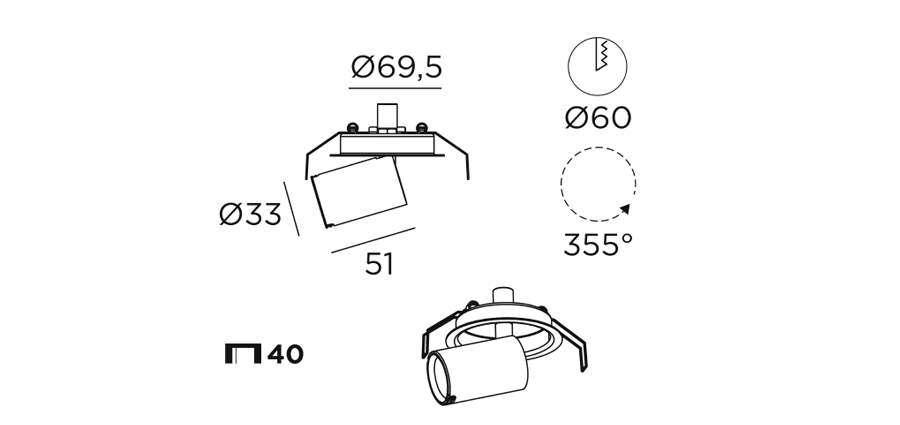

Technische tekening
