| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | Ø33x51mm / 80x155mm |
| Kleur – Couleur: | Matt White txt / Matt Black txt / Concrete Grey
Copper gray / Mud brown / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 3W x 02 & 8,2W x 02 & 9,2W x 02 |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Very Narrow Spot: 6,8° (3W)
Narrow Spot: 10,9° (8,2W) Flood: 36,4° (9,2W) Wide Flood: 46,9° (9,2W) Spot: 16,7° (9,2W) Narrow Flood: 23,9° (9,2W) Elliptical Narrow Spot: 53,9° / 12° (8,2W) Elliptical Wide Flood: 42,3° / 72° (3,9W) |
| Lumen: | Very Narrow Spot:
232 lm x 02 Narrow Spot: 492 lm x 02 Flood: 797 lm x 02 Wide Flood: 729 lm x 02 Spot: 708 lm x 02 Narrow Flood: 787 lm x 02 Elliptical Narrow Spot: 417 lm x 02 Elliptical Wide Flood: 616 lm x 02 |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Visor / Snoot / Honeycomb / Elliptical Lens |
SPOT REVO SMALL 2X
Technische Fiche

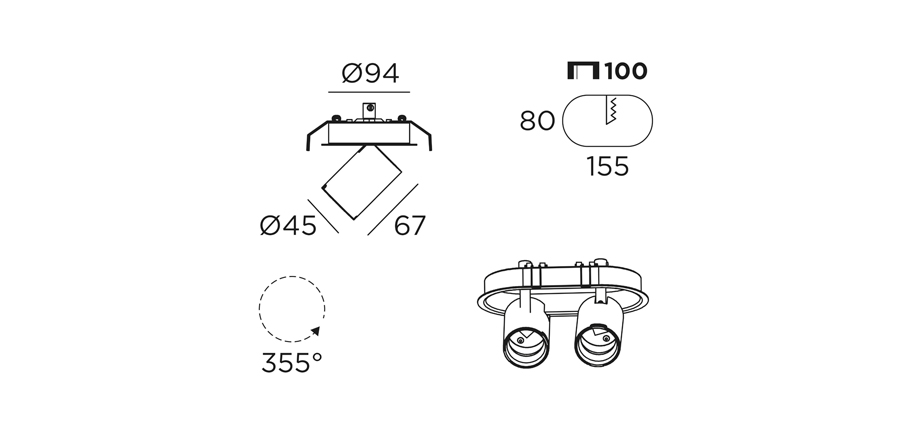

Technische tekening
