| Merk – Marque: | Climar Essence |
| Materiaal – Materiaux: | Glass fibre reinforced polyester |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 101x84x1277 mm / 1577x90x95 mm |
| Kleur – Couleur: | Grey |
| Bundel – Faisceau: | PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | L = 1277 mm
15W / 30W / 37W / 48
L= 1577 mm 16W / 41W / 44W / 60W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K / 6500°K |
| Lumen: | L = 1277 mm (Only 3000°K)
2200 lm / 4700 lm / 5100 lm / 6800 lm
L= 1577 mm 2500 lm / 6500 lm / 6700 lm / 8800 lm |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP66 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off / On-Off Multilumen / DALI
Trail rail as backbone base
Mounting Options: Ceiling Bracket / Hook for suspension |
3One Vision
Technische Fiche

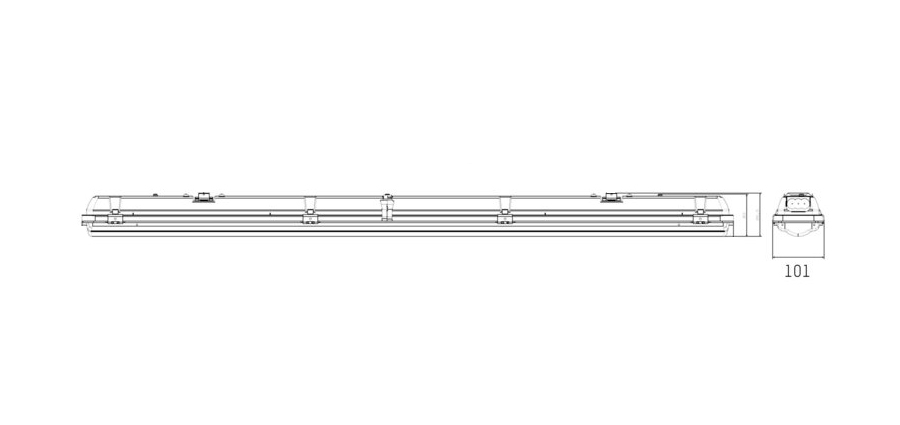

Technische tekening
