ASTRA 90 SURFACE

ASTRA 90 SURFACE
ASTRA 90 SURFACE

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: Ø400x90mm / Ø550x90mm / Ø830x90mm / Ø1110x90mm
Kleur – Couleur: Matt Black / Matt White
Diffuser – Diffuseur Opal / Microprismatic
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 16W / 23W / 24W / 27W / 32W / 42W / 53W / 85W / 93W / 96W / 101W / 155W / 173W
Kelvin graden – Degré Kelvin: 3000°K / 4000°K:
Lumen: Opal:

  • Ø400mm:

16W: 1741 lm (3000°K) / 1935 lm (4000°K)

23W: 2363 lm (3000°K) / 2621 lm (4000°K)

24W: 2720 lm (3000°K) / 2723 lm (4000°K)

  • Ø550mm:

27W: 3397 lm (3000°K) / 3580 lm (4000°K)

32W: 3640 lm (3000°K) / 3777 lm (4000°K)

42W: 5126 lm (3000°K) / 5405 lm (4000°K)

  • Ø830mm:

53W: 6847 lm (3000°K) / 7222 lm (4000°K)

85W: 10349 lm (3000°K) / 10915 lm (4000°K)

93W: 10245 lm (3000°K) / 10786 lm (4000°K)

  • Ø1110mm:

96W: 12346 lm (3000°K) / 13019 lm (4000°K)

101W: 11605 lm (3000°K) / 12216 lm (4000°K)

155W: 18712 lm (3000°K) / 19737 lm (4000°K)

175W: 18782 lm (3000°K) / 19775 lm (4000°K)



Microprismatic:

  • Ø400mm:

16W: 1792 lm (3000°K) / 1992 lm (4000°K)

23W: 2433 lm (3000°K) / 2698 lm (4000°K)

24W: 2723 lm (3000°K) / 2841 lm (4000°K)

  • Ø550mm:

27W: 3497 lm (3000°K) / 3686 lm (4000°K)

32W: 3802 lm (3000°K) / 3777 lm (4000°K)

42W: 5278 lm (3000°K) / 5565 lm (4000°K)

  • Ø830mm:

53W: 7049 lm (3000°K) / 7435 lm (4000°K)

85W: 10654 lm (3000°K) / 11237 lm (4000°K)

93W: 10891 lm (3000°K) / 11100 lm (4000°K)

  • Ø1110mm:

96W: 12710 lm (3000°K) / 13403 lm (4000°K)

101W: 12336 lm (3000°K) / 12332 lm (4000°K)

155W: 19263 lm (3000°K) / 20319 lm (4000°K)

175W: 19966 lm (3000°K) / 19962 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option: DALI / On-Off / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700ºK / 5000ºK / 6500ºK

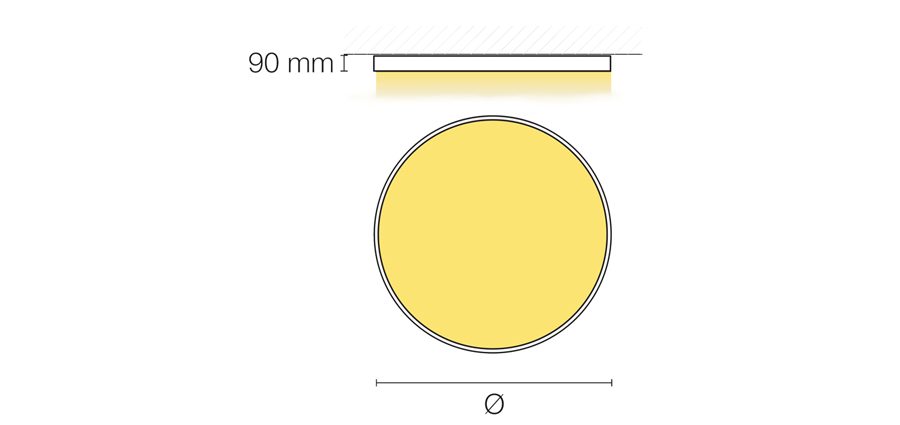

Technische tekening

ASTRA 90 SURFACE

ASTRA 90 SURFACE ASTRA 90 SURFACE

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: Ø400x90mm / Ø550x90mm / Ø830x90mm / Ø1110x90mm
Kleur – Couleur: Matt Black / Matt White
Diffuser – Diffuseur Opal / Microprismatic
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 16W / 23W / 24W / 27W / 32W / 42W / 53W / 85W / 93W / 96W / 101W / 155W / 173W
Kelvin graden – Degré Kelvin: 3000°K / 4000°K:
Lumen: Opal:

  • Ø400mm:

16W: 1741 lm (3000°K) / 1935 lm (4000°K)

23W: 2363 lm (3000°K) / 2621 lm (4000°K)

24W: 2720 lm (3000°K) / 2723 lm (4000°K)

  • Ø550mm:

27W: 3397 lm (3000°K) / 3580 lm (4000°K)

32W: 3640 lm (3000°K) / 3777 lm (4000°K)

42W: 5126 lm (3000°K) / 5405 lm (4000°K)

  • Ø830mm:

53W: 6847 lm (3000°K) / 7222 lm (4000°K)

85W: 10349 lm (3000°K) / 10915 lm (4000°K)

93W: 10245 lm (3000°K) / 10786 lm (4000°K)

  • Ø1110mm:

96W: 12346 lm (3000°K) / 13019 lm (4000°K)

101W: 11605 lm (3000°K) / 12216 lm (4000°K)

155W: 18712 lm (3000°K) / 19737 lm (4000°K)

175W: 18782 lm (3000°K) / 19775 lm (4000°K)



Microprismatic:

  • Ø400mm:

16W: 1792 lm (3000°K) / 1992 lm (4000°K)

23W: 2433 lm (3000°K) / 2698 lm (4000°K)

24W: 2723 lm (3000°K) / 2841 lm (4000°K)

  • Ø550mm:

27W: 3497 lm (3000°K) / 3686 lm (4000°K)

32W: 3802 lm (3000°K) / 3777 lm (4000°K)

42W: 5278 lm (3000°K) / 5565 lm (4000°K)

  • Ø830mm:

53W: 7049 lm (3000°K) / 7435 lm (4000°K)

85W: 10654 lm (3000°K) / 11237 lm (4000°K)

93W: 10891 lm (3000°K) / 11100 lm (4000°K)

  • Ø1110mm:

96W: 12710 lm (3000°K) / 13403 lm (4000°K)

101W: 12336 lm (3000°K) / 12332 lm (4000°K)

155W: 19263 lm (3000°K) / 20319 lm (4000°K)

175W: 19966 lm (3000°K) / 19962 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option: DALI / On-Off / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700ºK / 5000ºK / 6500ºK

Technische tekening
