Log 50 SD High Output

Log 50 SD High Output
Log 50 SD High Output

Technische Fiche

Merk – Marque: Molto Luce
Materiaal – Materiaux: Aluminium
Type: Opbouw / Apparent
Afmetingen armatuur – Dimensions armature: 52x65xLmm

L = 846 mm / L = 1126mm / L = 1407 mm

L = 1687 mm /  L = 2248 mm / L = 2529 mm

L = 2809 mm / L = 3371 mm / L = 4212 mm

Kleur – Couleur: Zwart-Noir / Wit-Blanc / Silver
Diffuser – Diffuseur Opal / Microprismatic
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:  20W / 26W / 33W / 40W / 52W / 60W / 66W / 78W / 99W
Kelvin graden – Degré Kelvin: 2700ºK / 3000°K /  4000°K
Lumen: 20W

Opal

2500 lm (2700°K) / 2570 lm (3000°K) / 2570 lm (4000°K)

Microprismatic

2380 lm (2700°K) / 2440 lm (3000°K) / 2440 lm (4000°K)



26W

Opal

3330 lm (2700°K) / 3420 lm (3000°K) / 3420 lm (4000°K)

Microprismatic

3170 lm (2700°K) / 3250 lm (3000°K) / 3250 lm (4000°K)



33W

Opal

4170 lm (2700°K) / 4280 lm (3000°K) / 4280 lm (4000°K)

Microprismatic

3960 lm (2700°K) / 4070 lm (3000°K) / 4070 lm (4000°K)



40W

Opal

5000 lm (2700°K) / 5130 lm (3000°K) / 5130 lm (4000°K)

Microprismatic

4760 lm (2700°K) / 4880 lm (3000°K) / 4880 lm (4000°K)



52W

Opal

6660 lm (2700°K) / 6840 lm (3000°K) / 6840 lm (4000°K)

Microprismatic

6330 lm (2700°K) / 6510 lm (3000°K) / 6510 lm (4000°K)



60W

Opal

7500 lm (2700°K) / 7700 lm (3000°K) / 7700 lm (4000°K)

Microprismatic

7140 lm (2700°K) / 7320 lm (3000°K) / 7320 lm (4000°K)



66W

Opal

8330 lm (2700°K) / 8560 lm (3000°K) / 8560 lm (4000°K)

Microprismatic

7920 lm (2700°K) / 8140 lm (3000°K) / 8140 lm (4000°K)



78W

Opal

9990 lm (2700°K) / 10260 lm (3000°K) / 10260 lm (4000°K)

Microprismatic

9500 lm (2700°K) / 9760 lm (3000°K) / 9760 lm (4000°K)



99W

Opal

12500lm (2700°K) / 12840 lm (3000°K) / 12840 lm (4000°K)

Microprismatic

11890 lm (2700°K) / 12210 lm (3000°K) / 12210 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V AC 50/60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DALI / On-Off

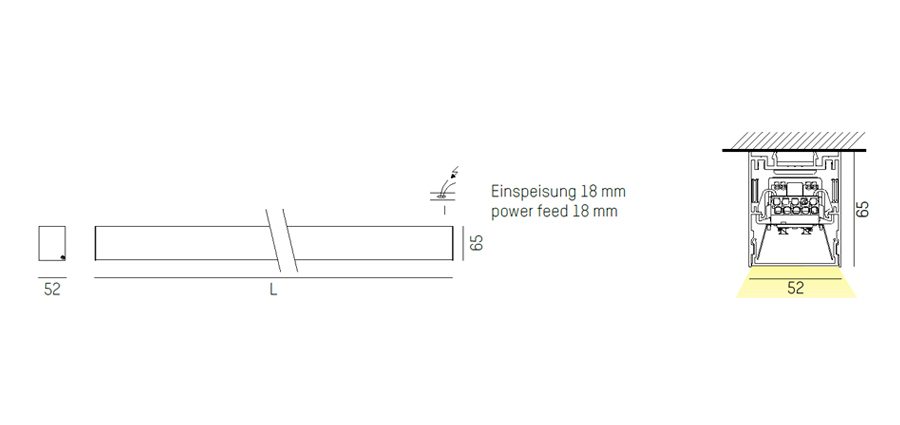

Technische tekening
