| Merk – Marque: | Climar Essence |
| Materiaal – Matxeriaux: | Body made of steel sheet with epoxy-polyester powder coating. |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | bxc mm
70×630 mm / 70×1240 mm / 70×1540 mm 177×645 mm / 177×1255 mm / 177×1555 mm |
| Kleur – Couleur: | White |
| Bundel – Faisceau: | Ribbed acrylic PMMAdiffuser for efficient lighting. |
| Uitrusting – Equipement: | T8 LED Tubes |
| Systeemvermogen – Puissance de système: | 1x10W MAX / 1x22W MAX / 1x24W MAX
2x10W MAX / 2x22W MAX / 2x24W MAX |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 800 lm / 1200 lm / 1905 lm
1587 lm / 2381 lm / 3779 lm |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP30 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off |
ACDE Surface
Technische Fiche

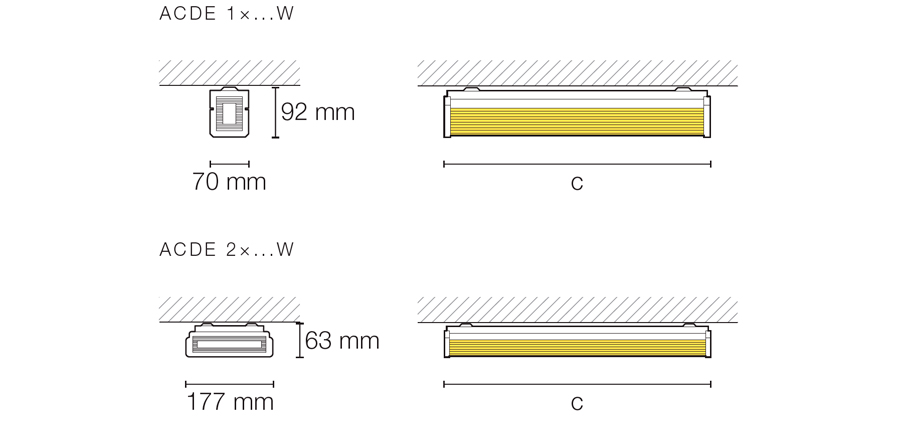

Technische tekening
