MUSEO COMPACT

MUSEO COMPACT
MUSEO COMPACT

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Die-cast aluminium and sheet metal base
Type: Projector

355º Horizontal and +/- 180º Vertical

Kleur – Couleur: Body finish:

Matt white / Matt Black / Concrete Grey



Ring finish:

Lacquered red / Matt orange / Spring green

Corn yellow / Matt white / Matt black

Concrete grey

Bundel – Faisceau: 21° / 28° / 38°
Uitrusting – Equipement: COB LED
Systeemvermogen – Puissance de système: 26w / 33w / 40w
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: 26W

RA-CRI >95

Nominal Output:

1 x 3027 lm (2700ºK) / 1 x 3146 lm (3000ºK ) / 1 x 3193 lm (4000ºK)

Delivered Output:

Spot 15º

1 x 2129 lm (2700ºK) / 1 x 2213 lm (3000ºK ) / 1 x 2246 lm (4000ºK)

Medium 30º

1 x 2096 lm (2700ºK) / 1 x 2179 lm (3000ºK ) / 1 x 2211 lm (4000ºK)

Wide 58º

1 x 2092 lm (2700ºK) / 1 x 2174 lm (3000ºK ) / 1 x 2206 lm (4000ºK)



RA-CRI >85

Nominal Output:

1 x 3648 lm

Delivered Output:

Spot 15º

1 x 2566 lm

Medium 30º

1 x 2526 lm

Wide 58º

1 x 2521 lm





33W

RA-CRI >95

Nominal Output:

1 x 3798 lm (2700ºK) / 1 x 3949 lm (3000ºK ) / 1 x 4011 lm (4000ºK)

Delivered Output:

Spot 15º

1 x 2671 lm (2700ºK) / 1 x 2777 lm (3000ºK ) / 1 x 2821 lm (4000ºK)

Medium 30º

1 x 2630 lm (2700ºK) / 1 x 2734 lm (3000ºK ) / 1 x 2777 lm (4000ºK)

Wide 58º

1 x 2624 lm (2700ºK) / 1 x 2728 lm (3000ºK ) / 1 x 2771 lm (4000ºK)



RA-CRI >85

Nominal Output:

1 x 1611 lm

Delivered Output:

Spot 15º

1 x 3243 lm

Medium 30º

1 x 3193 lm

Wide 58º

1 x 3186 lm





40W

RA-CRI >95

Nominal Output:

1 x 4745 lm (2700ºK) / 1 x 4932 lm (3000ºK ) / 1 x 5009 lm (4000ºK)

Delivered Output:

Spot 20º

1 x 3255 lm (2700ºK) / 1 x 3383 lm (3000ºK ) / 1 x 3436 lm (4000ºK)

Medium 28º

1 x 3244 lm (2700ºK) / 1 x 3371 lm (3000ºK ) / 1 x 3424 lm (4000ºK)

Wide 60º

1 x 3224 lm (2700ºK) / 1 x 3351 lm (3000ºK ) / 1 x 3403 lm (4000ºK)



RA-CRI >85

Nominal Output:

1 x 5760 lm

Delivered Output:

Spot 20º

1 x 3951 lm

Medium 28º

1 x 3937 lm

Wide 60º

1 x 3913 lm

RA – CRI: >85

(>95 –  Only with  3000ºK option)

Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Voeding: 220-240V / 50-60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
Optie ring anti verblinding – Option anneau Anti-éblouissement Beschikbaar – Disponible
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option Narrow Optic / Cut-Off / Visor / Honeycomb Louvre

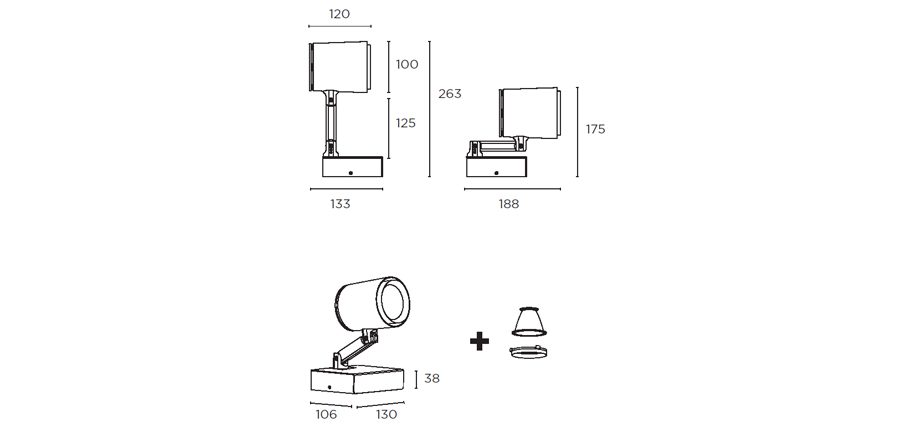

Technische tekening
