MUSEO MICRO 4x

MUSEO MICRO 4x
MUSEO MICRO 4x

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Base: Sheet metal

Optical Body: Aluminium

Type: Projector

35º Horizontal and +/- 90º Vertical

Afmetingen armatuur – Dimensions armature: 214x75x66mm
Kleur – Couleur: Body finish:

Matt white / Matt Black / concrete Grey



Ring finish:

Brick red / Lacquered red / Matt orange

Spring green / Corn yellow / Matt white

Matt black / Baby blue / Concrete grey

Uitrusting – Equipement: COB LED
Systeemvermogen – Puissance de système: 4 x 4,5W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: RA-CRI >95

Nominal Output:

4 x 480 lm (2700ºK) / 4 x 504 lm (3000ºK ) / 4 x 539 lm (4000ºK)

Delivered Output:

Medium 28º

4 x 295 lm (2700ºK) / 4 x 310 lm (3000ºK ) / 4 x 331 lm (4000ºK)

Large 53º

4 x 226 lm (2700ºK) / 4 x 237 lm (3000ºK ) / 4 x 254 lm (4000ºK)



RA-CRI >85

Nominal Output:

4 x 607 lm

Delivered Output:

Medium 28º

4 x 373 lm

Large 53º

4 x 286 lm

RA-CRI: >85

(>95 –  Only with  3000ºK option)

Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220/240V – 50/60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option  On-Off / DALI  / DIM PUSH / 1 – 10 V / Em. 1h

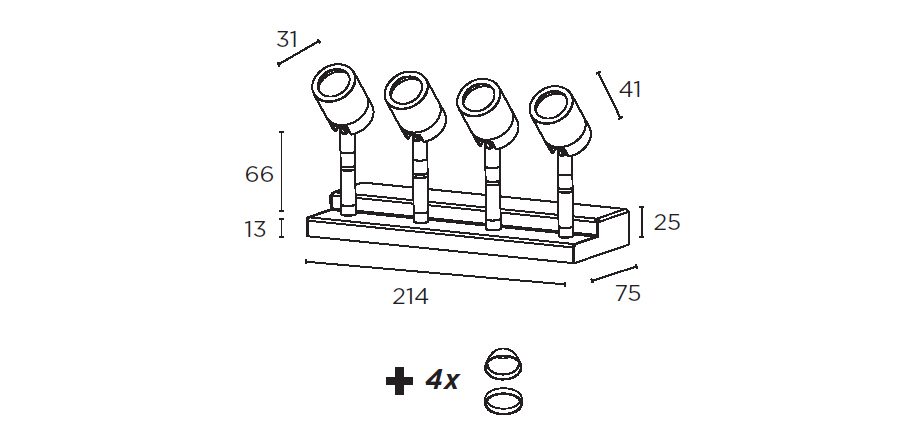

Technische tekening

MUSEO MICRO 4x

MUSEO MICRO 4x MUSEO MICRO 4x

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Base: Sheet metal

Optical Body: Aluminium

Type: Projector

35º Horizontal and +/- 90º Vertical

Afmetingen armatuur – Dimensions armature: 214x75x66mm
Kleur – Couleur: Body finish:

Matt white / Matt Black / concrete Grey



Ring finish:

Brick red / Lacquered red / Matt orange

Spring green / Corn yellow / Matt white

Matt black / Baby blue / Concrete grey

Uitrusting – Equipement: COB LED
Systeemvermogen – Puissance de système: 4 x 4,5W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: RA-CRI >95

Nominal Output:

4 x 480 lm (2700ºK) / 4 x 504 lm (3000ºK ) / 4 x 539 lm (4000ºK)

Delivered Output:

Medium 28º

4 x 295 lm (2700ºK) / 4 x 310 lm (3000ºK ) / 4 x 331 lm (4000ºK)

Large 53º

4 x 226 lm (2700ºK) / 4 x 237 lm (3000ºK ) / 4 x 254 lm (4000ºK)



RA-CRI >85

Nominal Output:

4 x 607 lm

Delivered Output:

Medium 28º

4 x 373 lm

Large 53º

4 x 286 lm

RA-CRI: >85

(>95 –  Only with  3000ºK option)

Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220/240V – 50/60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option  On-Off / DALI  / DIM PUSH / 1 – 10 V / Em. 1h

Technische tekening
