MUSEO MINI 2x

MUSEO MINI 2x
MUSEO MINI 2x

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Die-cast aluminium and sheet metal base
Type: Projector

355º Horizontal and +/- 100º Vertical

Kleur – Couleur: Body finish:

Matt white / Matt Black / concrete Grey



Ring finish:

Brick red / Lacquered red / Matt orange

Spring green / Corn yellow / Matt white

Matt black / Baby blue / Concrete grey

Bundel – Faisceau: 21° / 30° / 59°
Uitrusting – Equipement: COB LED
Systeemvermogen – Puissance de système: 6W / 9W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen: 6W:

RA-CRI >95

Nominal Output:

2 x 760 lm (2700ºK) / 2 x 800 lm (3000ºK ) / 2 x 810 lm (4000ºK)

Delivered Output:

Medium 21º

2 x 574 lm (2700ºK) / 2 x 604 lm (3000ºK ) / 2 x 612 lm (4000ºK)

Large 30º

2 x 571 lm (2700ºK) / 2 x 601 lm (3000ºK ) / 2 x 609 lm (4000ºK)

Wide 59º

2 x 495 lm (2700ºK) / 2 x 521 lm (3000ºK ) / 2 x 527 lm (4000ºK)



RA-CRI >85

Nominal Output:

2 x 945 lm

Delivered Output:

Medium 21º

2 x 714 lm

Large 30º

2 x 710 lm

Wide 59º

2 x 615 lm



9W:

RA-CRI >95

Nominal Output:

2 x 1050 lm (2700ºK) / 2 x 1100 lm (3000ºK ) / 2 x 1120 lm (4000ºK)

Delivered Output:

Medium 21º

2 x 793 lm (2700ºK) / 2 x 831 lm (3000ºK ) / 2 x 846 lm (4000ºK)

Large 30º

2 x 789 lm (2700ºK) / 2 x 826 lm (3000ºK ) / 2 x 841 lm (4000ºK)

Wide 59º

2 x 683 lm (2700ºK) / 2 x 716 lm (3000ºK ) / 2 x 729 lm (4000ºK)



RA-CRI >85

Nominal Output:

2 x 1300 lm

Delivered Output:

Medium 28º

2 x 892 lm

Large 30º

2 x 977 lm

Wide 59º

2 x 846 lm

RA – CRI: >85

(>95 –  Only with  3000ºK option)

Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Voeding: 220-240V / 50-60Hz
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
Optie ring anti verblinding – Option anneau Anti-éblouissement Beschikbaar – Disponible
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option Narrow Optic / Cut-Off / Visor / Honeycomb Louvre

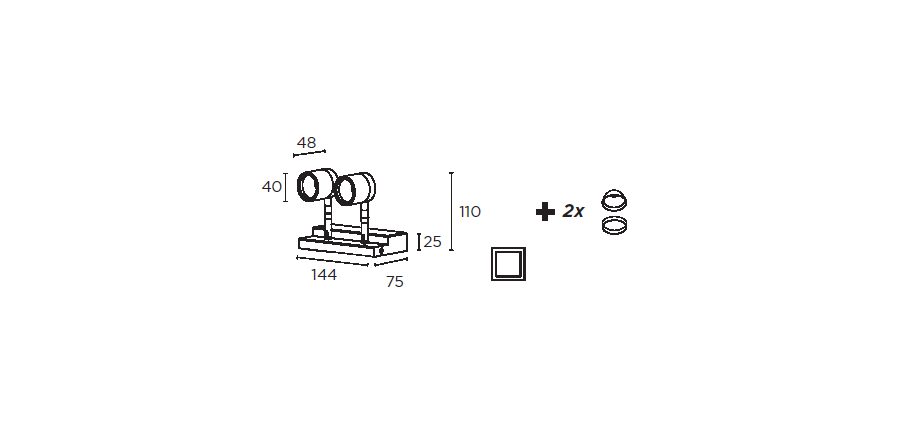

Technische tekening
