| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: |
400x400mm / 600x600mm / 800x800mm / 1000x1000mm H=72mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Silver Matt |
| Diffuser – Diffuseur | Opaal-Opal / Microprismatisch-Microprismatique |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
45W / 54W / 86W / 104W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: |
Direct & Indirect Beam
-Ø400mm: Opaal-Opal: 4850 lm (2700°K) / 5040 lm (3000°K) / 5040 lm (4000°K) Microprismatisch-Microprismatique: 4950 lm (2700°K) / 5140 lm (3000°K) / 5140 lm (4000°K)
-Ø600mm: Opaal-Opal: 6060 lm (2700°K) / 6290 lm (3000°K) / 6290 lm (4000°K) Microprismatisch-Microprismatique: 6160 lm (2700°K) / 6400 lm (3000°K) / 6400 lm (4000°K)
-Ø800mm: Opaal-Opal: 9500 lm (2700°K) / 9840 lm (3000°K) / 9840 lm (4000°K) Microprismatisch-Microprismatique: 9590 lm (2700°K) / 9930 lm (3000°K) / 9930 lm (4000°K)
-Ø1000mm: Opaal-Opal: 11520 lm (2700°K) / 1930 lm (3000°K) / 1930 lm (4000°K) Microprismatisch-Microprismatique: 11850 lm (2700°K) / 12270 lm (3000°K) / 12270 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V / 50-60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI / Emergency 3h / Emergency 3h DALI |
Bina Square PDI
Technische Fiche

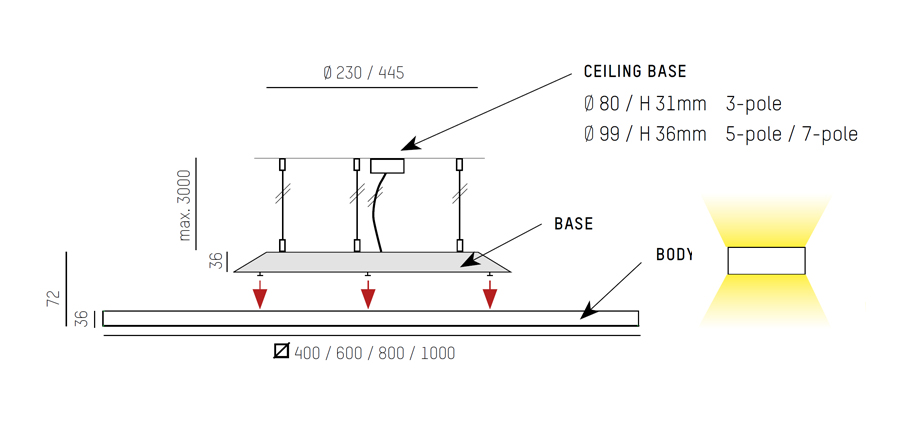

Technische tekening
