| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel – Suspension |
| Afmetingen armatuur – Dimensions armature: | Ø600x90mm
Ø800x90mm Ø1000x90mm Ø1200x90mm Ø1400x90mm Ø1600x90mm Ø1800x90mm |
| Kleur – Couleur: | Matt Black / Matt White |
| Diffuser – Diffuseur | Opal PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 24W / 44W
33W / 60W 41W / 75W 49W / 90W 58W / 106W 66W / 121W 74W / 136W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen | 24W
1278 lm (2700°K) / 1339 lm (3000°K) / 1363 lm (4000°K) 44W 2507 lm (2700°K) / 2610 lm (3000°K) / 2677 lm (4000°K)
33W 1720 lm (2700°K) / 1790 lm (3000°K) / 1834 lm (4000°K) 60W 3374 lm (2700°K) / 3513 lm (3000°K) / 3603 lm (4000°K)
41W 2162 lm (2700°K) / 2265 lm (3000°K) / 2306 lm (4000°K) 75W 4242 lm (2700°K) / 4417 lm (3000°K) / 4530 lm (4000°K)
49W 2604 lm (2700°K) / 2728 lm (3000°K) / 2778 lm (4000°K) 90W 5109 lm (2700°K) / 5320 lm (3000°K) / 5456 lm (4000°K)
58W 3046 lm (2700°K) / 3191 lm (3000°K) / 3249 lm (4000°K) 106W 5976 lm (2700°K) / 6223 lm (3000°K) / 6382 lm (4000°K)
66W 3488 lm (2700°K) / 3654 lm (3000°K) / 3721 lm (4000°K) 121W 6844 lm (2700°K) / 7126 lm (3000°K) / 7309 lm (4000°K)
74W 3930 lm (2700°K) / 4118 lm (3000°K) / 4192 lm (4000°K) 136W 7711 lm (2700°K) / 8029 lm (3000°K) / 8235 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off |
BOYA 4025 IN
Technische Fiche

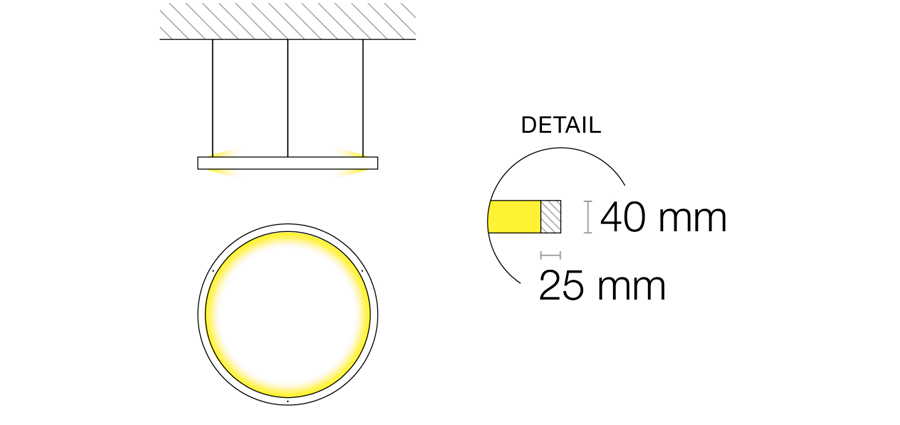

Technische tekening
