BOYA 4025 OUT

BOYA 4025 OUT

Technische Fiche

Merk – Marque: Climar
Materiaal – Materiaux: Aluminium
Type: Pendel – Suspension
Afmetingen armatuur – Dimensions armature: Ø600x90mm

Ø800x90mm

Ø1000x90mm

Ø1200x90mm

Ø1400x90mm

Ø1600x90mm

Ø1800x90mm

Kleur – Couleur: Matt Black / Matt White
Diffuser – Diffuseur Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 24W / 44W

33W / 60W

41W / 75W

49W / 90W

58W / 106W

66W / 121W

74W / 136W

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen 24W

1278 lm (2700°K) / 1339 lm (3000°K) / 1363 lm (4000°K)

44W

2507 lm (2700°K) / 2610 lm (3000°K) / 2677 lm (4000°K)



33W

1720 lm (2700°K) / 1790 lm (3000°K) / 1834 lm (4000°K)

60W

3374 lm (2700°K) / 3513 lm (3000°K) / 3603 lm (4000°K)



41W

2162 lm (2700°K) / 2265 lm (3000°K) / 2306 lm (4000°K)

75W

4242 lm (2700°K) / 4417 lm (3000°K) / 4530 lm (4000°K)



49W

2604 lm (2700°K) / 2728 lm (3000°K) / 2778 lm (4000°K)

90W

5109 lm (2700°K) / 5320 lm (3000°K) / 5456 lm (4000°K)



58W

3046 lm (2700°K) / 3191 lm (3000°K) / 3249 lm (4000°K)

106W

5976 lm (2700°K) / 6223 lm (3000°K) / 6382 lm (4000°K)



66W

3488 lm (2700°K) / 3654 lm (3000°K) / 3721 lm (4000°K)

121W

6844 lm (2700°K) / 7126 lm (3000°K) / 7309 lm (4000°K)



74W

3930 lm (2700°K) / 4118 lm (3000°K) / 4192 lm (4000°K)

136W

7711 lm (2700°K) / 8029 lm (3000°K) / 8235 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V/50Hz
Bescherming – Protection: IP40 / IK05
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option DALI / On-Off

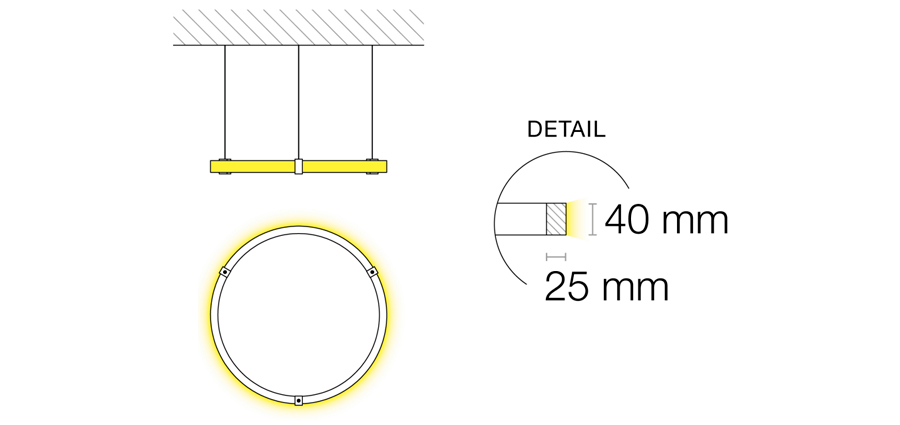

Technische tekening
