| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium body without visible joins |
| Type: |
Pendel – Suspension |
|
Afmetingen armatuur – Dimensions armature: |
Ø1000x90mm / Ø1400x90mm / Ø1800x90mm |
| Kleur – Couleur: |
Matt Black / Matt White |
|
Diffuser – Diffuseur |
Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 26W / 28W / 36W / 38W / 47W / 49W |
| Kelvin graden – Degré Kelvin: |
3000°K: 28W / 38W / 49W 4000°K: 26W / 36W / 47W |
| Lumen |
1457 lm (28W & 26W) 2004 lm (38W & 36W) 2596 lm (49W & 47W) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
DALI / Push / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700ºK / 5000ºK / 6500ºK |
BOYA 90 UP
Technische Fiche

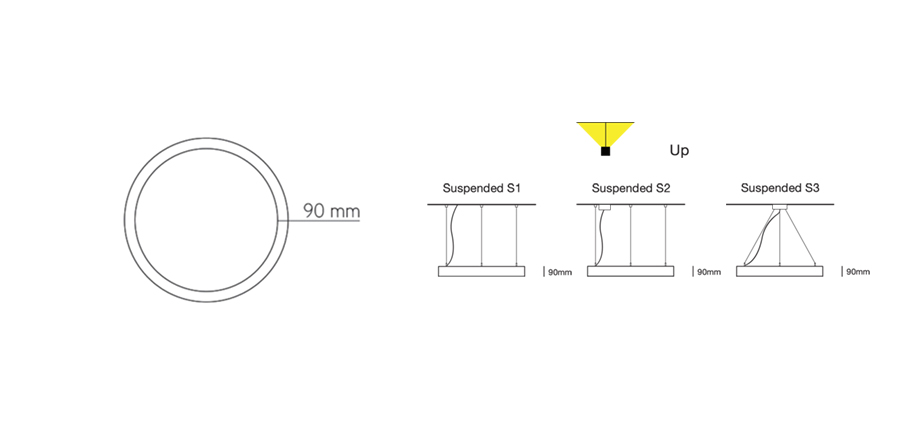

Technische tekening
