| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: |
Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: |
52x65xLmm L = 1126mm / L = 1407 mm / L = 1687 mm L = 2248 mm / L = 2529 mm / L = 2809 mm L = 3371 mm / L = 4212 mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Silver |
|
Diffuser – Diffuseur |
Opal / Microprismatic |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
14W / 17W / 20W / 28W / 30W / 34W / 42W / 51W |
| Kelvin graden – Degré Kelvin: | 2700ºK / 3000°K / 4000°K |
| Lumen: |
14W Opal 1680 lm (2700°K) / 1720 lm (3000°K) / 1720 lm (4000°K) Microprismatic 1600 lm (2700°K) / 1640 lm (3000°K) / 1640 lm (4000°K)
17W Opal 2100 lm (2700°K) / 2160 lm (3000°K) / 2160 lm (4000°K) Microprismatic 2000 lm (2700°K) / 2050 lm (3000°K) / 2050 lm (4000°K)
20W Opal 2510 lm (2700°K) / 2570 lm (3000°K) / 2570 lm (4000°K) Microprismatic 2390 lm (2700°K) / 2450 lm (3000°K) / 2450 lm (4000°K)
28W Opal 3360 lm (2700°K) / 3440 lm (3000°K) / 3440 lm (4000°K) Microprismatic 3200 lm (2700°K) / 3280 lm (3000°K) / 3280 lm (4000°K)
30W Opal 3760 lm (2700°K) / 3860 lm (3000°K) / 3860 lm (4000°K) Microprismatic 3580 lm (2700°K) / 3670 lm (3000°K) / 3670 lm (4000°K)
34W Opal 4200 lm (2700°K) / 4310 lm (3000°K) / 4310 lm (4000°K) Microprismatic 3990 lm (2700°K) / 4100 lm (3000°K) / 4100 lm (4000°K)
42W Opal 5040 lm (2700°K) / 5170 lm (3000°K) / 5170 lm (4000°K) Microprismatic 4800 lm (2700°K) / 4910 lm (3000°K) / 4910 lm (4000°K)
51W Opal 6300 lm (2700°K) / 6470 lm (3000°K) / 6470 lm (4000°K) Microprismatic 5990 lm (2700°K) / 6150 lm (3000°K) / 6150 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC 50/60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
DALI / On-Off |
Log 50 PD Mid Output
Technische Fiche

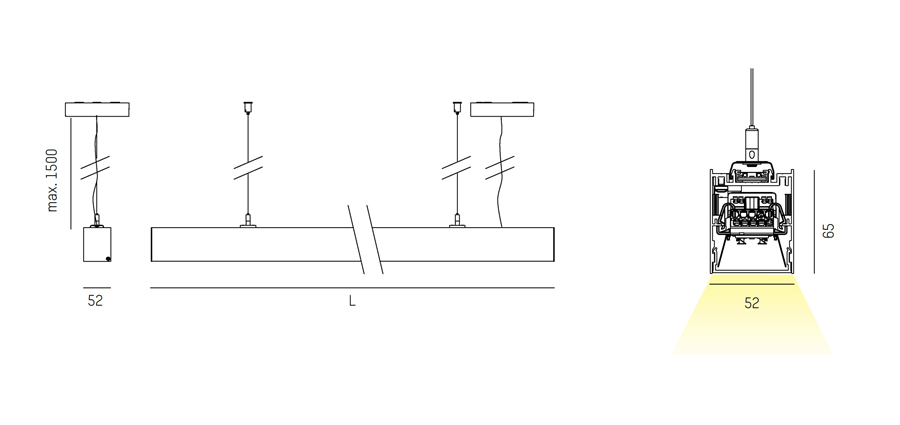

Technische tekening
