MORFI MEDIUM IN

MORFI MEDIUM IN
MORFI MEDIUM IN

Technische Fiche

Merk – Marque: Petridis
Materiaal – Materiaux: Aluminium

High efficient polycarbonate satin cover

Type: Pendel / Suspension
Afmetingen armatuur – Dimensions armature: ØA = 610 mm / ØB = 570 mm / C = 48 mm

ØA = 805 mm / ØB = 765 mm / C = 48 mm

ØA = 1090 mm / ØB = 1050 mm / C = 48 mm

ØA = 1470 mm / ØB = 1430 mm / C = 48 mm

Kleur – Couleur: White / Black / Titan
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: Standar Version:

ØA = 610mm / 805mm / 1090mm /  1470 mm

30W / 40W / 55W / 70W

60W / 80W / 105 / 140W



Low Output Version:

ØA = 610mm / 805mm / 1090mm /  1470 mm

40w / 50w / 70w / 95w

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
RA-CRI: >80
Lumen: Standar Version:

140 lm/W at 4000ºK

133 lm/W at 3000ºK



Low Output Version:

100 lm/W at 4000ºK

95 lm/W at 3000ºK

Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver



230/50Hz

Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option Connection for operation on 230V-50/60Hz with dimmer dali or 1-10VDC ballast



Special shapes and dimensions

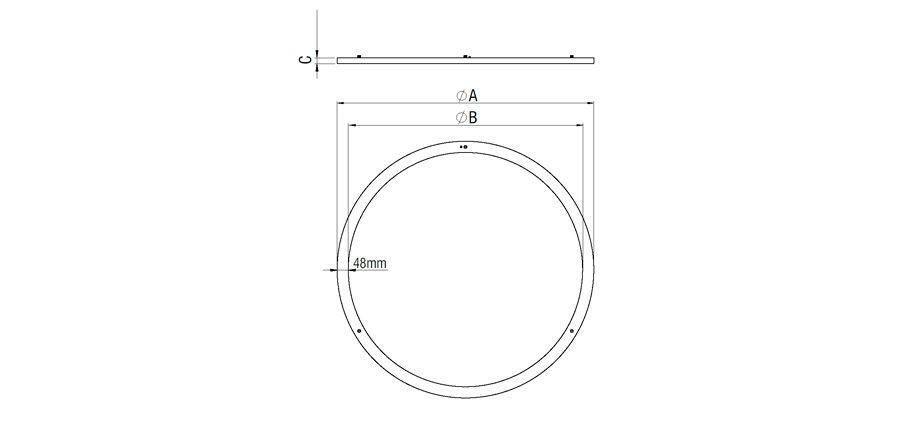

Technische tekening

MORFI MEDIUM IN

MORFI MEDIUM IN MORFI MEDIUM IN

Technische Fiche

Merk – Marque: Petridis
Materiaal – Materiaux: Aluminium

High efficient polycarbonate satin cover

Type: Pendel / Suspension
Afmetingen armatuur – Dimensions armature: ØA = 610 mm / ØB = 570 mm / C = 48 mm

ØA = 805 mm / ØB = 765 mm / C = 48 mm

ØA = 1090 mm / ØB = 1050 mm / C = 48 mm

ØA = 1470 mm / ØB = 1430 mm / C = 48 mm

Kleur – Couleur: White / Black / Titan
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: Standar Version:

ØA = 610mm / 805mm / 1090mm /  1470 mm

30W / 40W / 55W / 70W

60W / 80W / 105 / 140W



Low Output Version:

ØA = 610mm / 805mm / 1090mm /  1470 mm

40w / 50w / 70w / 95w

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
RA-CRI: >80
Lumen: Standar Version:

140 lm/W at 4000ºK

133 lm/W at 3000ºK



Low Output Version:

100 lm/W at 4000ºK

95 lm/W at 3000ºK

Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver



230/50Hz

Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
Optie – Option Connection for operation on 230V-50/60Hz with dimmer dali or 1-10VDC ballast



Special shapes and dimensions

Technische tekening
