Log Out 2.1 SD

Log Out 2.1 SD
Log Out 2.1 SD

Technische Fiche

Merk – Marque:  Molto Luce
Materiaal – Materiaux: Aluminium
Type:

Opbouw / Apparent

Afmetingen armatuur – Dimensions armature:

76x90xLmm

Kleur – Couleur: Zwart-Noir / Wit-Blanc / Aluminium Anodized
Diffuser – Diffuseur PMMA Opal (Op) / Microprismatisch-Microprismatique (Mp)
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:

High Efficiency

12W (L = 850mm) / 16W (L= 1131 mm) / 20W (L= 1411 mm)

32W (L= 2255 mm) / 40W (L= 2816 mm) / 48W (L= 3379 mm)

60W (L= 4220 mm)



High Output

24W (L = 850mm) / 31W (L= 1131 mm) / 40W (L= 1411 mm)

62W (L= 2255 mm) / 80W (L= 2816 mm) / 93W (L= 3379 mm)

120W (L= 4220 mm)

Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 4000°K
Lumen:

Direct Beam



High Efficiency

12W:

Pm: 1490 lm (2700°K) / 1530 lm (3000°K) / 1530 lm (4000°K)

Mp: 1450 lm (2700°K) / 1490 lm (3000°K) / 1490 lm (4000°K)



16W:

Pm: 1980 lm (2700°K) / 2040 lm (3000°K) / 2040 lm (4000°K)

Mp: 1940 lm (2700°K) / 1990 lm (3000°K) / 1990 lm (4000°K)



20W:

Pm: 2480 lm (2700°K) / 2550 lm (3000°K) / 2550 lm (4000°K)

Mp: 2430 lm (2700°K) / 2490 lm (3000°K) / 2490 lm (4000°K)



32W:

Pm: 3960 lm (2700°K) / 4080 lm (3000°K) / 4080 lm (4000°K)

Mp: 3880 lm (2700°K) / 3980 lm (3000°K) / 3980 lm (4000°K)



40W:

Pm: 4960 lm (2700°K) / 5100 lm (3000°K) / 5100 lm (4000°K)

Mp: 5820 lm (2700°K) / 5970 lm (3000°K) / 5970 lm (4000°K)



48W:

Pm: 5940 lm (2700°K) / 6120 lm (3000°K) / 6120 lm (4000°K)

Mp: 5820 lm (2700°K) / 5970 lm (3000°K) / 5970 lm (4000°K)



60W:

Pm: 7440 lm (2700°K) / 7650 lm (3000°K) / 7650 lm (4000°K)

Mp: 7290 lm (2700°K) / 7460 lm (3000°K) / 7460 lm (4000°K)



High Output

24W:

Pm: 2870 lm (2700°K) / 2950 lm (3000°K) / 2950 lm (4000°K)

Mp: 2800 lm (2700°K) / 2880 lm (3000°K) / 2880 lm (4000°K)



31W:

Pm: 3820 lm (2700°K) / 3930 lm (3000°K) / 3930 lm (4000°K)

Mp: 3740 lm (2700°K) / 3840 lm (3000°K) / 3840 lm (4000°K)



40W:

Pm: 4780 lm (2700°K) / 4920 lm (3000°K) / 4920 lm (4000°K)

Mp: 4670 lm (2700°K) / 4810 lm (3000°K) / 4810 lm (4000°K)



62W:

Pm: 7640 lm (2700°K) / 7860 lm (3000°K) / 7860 lm (4000°K)

Mp: 7480 lm (2700°K) / 7680 lm (3000°K) / 7680 lm (4000°K)



80W:

Pm: 9560 lm (2700°K) / 9840 lm (3000°K) / 9840 lm (4000°K)

Mp: 9340 lm (2700°K) / 9620 lm (3000°K) / 9620 lm (4000°K)



93W:

Pm: 11460 lm (2700°K) / 11790 lm (3000°K) / 11790 lm (4000°K)

Mp: 11220 lm (2700°K) / 11520 lm (3000°K) / 11520 lm (4000°K)



120W:

Pm: 14340 lm (2700°K) / 14760 lm (3000°K) / 14760 lm (4000°K)

Mp: 14010 lm (2700°K) / 14430 lm (3000°K) / 14430 lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 220-240V AC/DC
Bescherming – Protection: IP20
Norm – Norme: CE EN60598-1
CIE fluxcode:

Op aanvraag – Sur demande

Optie – Option

Analog Dim 1-10V / DALI / Push

UGR<19 in Microprismatic & High Efficiency Version

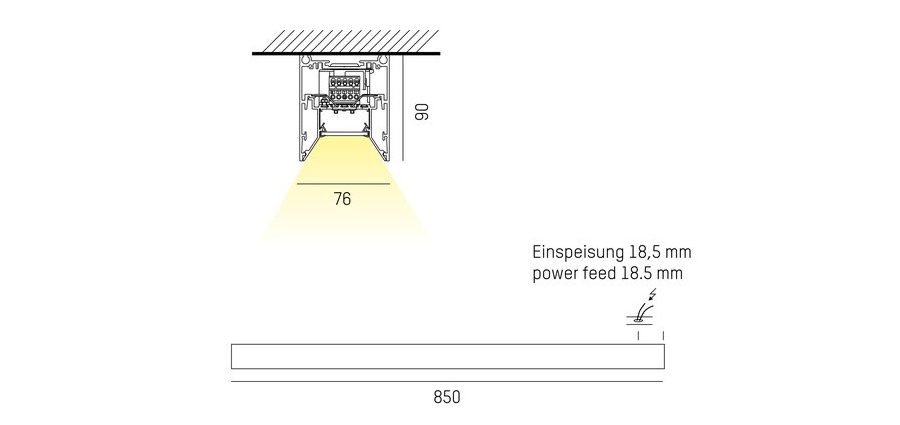

Technische tekening

Technische tekening
