Tupoli 55 Suspended

Tupoli 55 Suspended
Tupoli 55 Suspended

Technische Fiche

Merk – Marque:  Climar
Type:

Pendel / Suspension

Afmetingen armatuur – Dimensions armature:

Ø55xCmm

C = 900mm / C = 1181mm

C = 1462mm / C = 2305mm

C = 2867mm

Diffuser – Diffuseur: Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:

C = 900mm – 19W

C = 1181mm – 18W / 26W

C = 1462mm – 23W / 32W

C = 2305mm – 36W / 52W

C = 2867mm – 45W / 64W

Kelvin graden – Degré Kelvin: 3000°K / 4200°K
Lumen:

C = 900mm

19W: 2323lm (3000 °K ) / 2431lm (4000°K)

C = 1181mm

18W: 2287lm (3000 °K ) / 2393lm (4000°K)

26W: 3096lm (3000 °K ) / 3241lm (4000°K)

C = 1462mm

23W: 2858lm (3000 °K ) / 2991lm (4000°K)

32W: 3871lm (3000 °K ) / 4052lm (4000°K)

C = 2305mm

36W: 4574lm (3000 °K ) / 4786lm (4000°K)

52W: 6193lm (3000 °K ) / 6482lm (4000°K)

C = 2867mm

45W: 5716lm (3000 °K ) / 5981lm (4000°K)

64W: 7742lm (3000 °K ) / 8103lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: External LED driver
Voeding – Alimentation: 230V / 50Hz
Bescherming – Protection: IP40 / IK08
Norm – Norme: CE EN60598-1
CIE fluxcode:

Op aanvraag – Sur demande

Optie – Option

DALI / Push / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700ºK / 5000ºK / 6500ºK

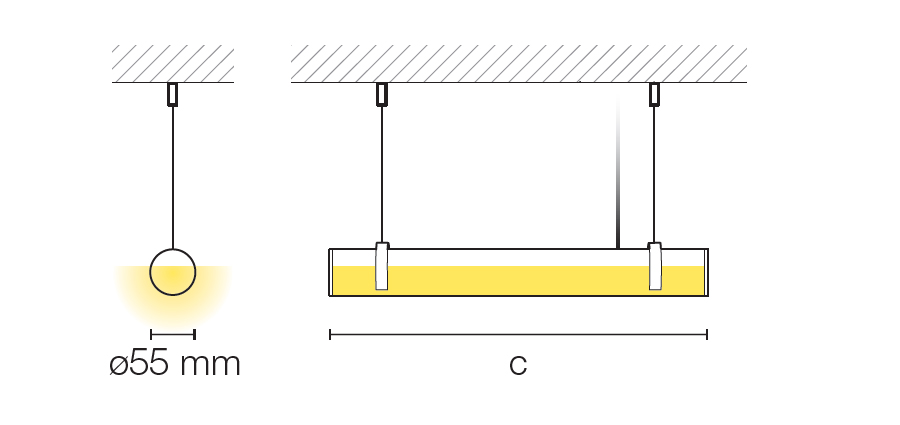

Technische tekening

Technische tekening

Tupoli 55 Suspended

Tupoli 55 Suspended Tupoli 55 Suspended

Technische Fiche

Merk – Marque:  Climar
Type:

Pendel / Suspension

Afmetingen armatuur – Dimensions armature:

Ø55xCmm

C = 900mm / C = 1181mm

C = 1462mm / C = 2305mm

C = 2867mm

Diffuser – Diffuseur: Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:

C = 900mm – 19W

C = 1181mm – 18W / 26W

C = 1462mm – 23W / 32W

C = 2305mm – 36W / 52W

C = 2867mm – 45W / 64W

Kelvin graden – Degré Kelvin: 3000°K / 4200°K
Lumen:

C = 900mm

19W: 2323lm (3000 °K ) / 2431lm (4000°K)

C = 1181mm

18W: 2287lm (3000 °K ) / 2393lm (4000°K)

26W: 3096lm (3000 °K ) / 3241lm (4000°K)

C = 1462mm

23W: 2858lm (3000 °K ) / 2991lm (4000°K)

32W: 3871lm (3000 °K ) / 4052lm (4000°K)

C = 2305mm

36W: 4574lm (3000 °K ) / 4786lm (4000°K)

52W: 6193lm (3000 °K ) / 6482lm (4000°K)

C = 2867mm

45W: 5716lm (3000 °K ) / 5981lm (4000°K)

64W: 7742lm (3000 °K ) / 8103lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: External LED driver
Voeding – Alimentation: 230V / 50Hz
Bescherming – Protection: IP40 / IK08
Norm – Norme: CE EN60598-1
CIE fluxcode:

Op aanvraag – Sur demande

Optie – Option

DALI / Push / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700ºK / 5000ºK / 6500ºK

Technische tekening

Technische tekening
