Tupoli-V 70 Suspended

Tupoli-V 70 Suspended
Tupoli-V 70 Suspended

Technische Fiche

Merk – Marque:  Climar
Type:

Pendel / Suspension

Afmetingen armatuur – Dimensions armature:

Ø70xCmm

C = 868mm / C = 1149mm

C = 1430mm / C = 2273mm

C = 2835mm

Diffuser – Diffuseur: Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:

C = 868mm – 19W / 38W

C = 1149mm – 25W / 50W

C = 1430mm – 31W / 63W

C = 2273mm – 50W / 101W

C = 2835mm – 63W / 126W

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen:

C = 868mm

19W: 2177lm (3000 °K ) / 2278lm (4000°K)

38W: 4353lm (3000 °K ) / 4555lm (4000°K)

C = 1149mm

25W: 2901lm (3000 °K ) / 3037lm (4000°K)

50W: 5805lm (3000 °K ) / 6073lm (4000°K)

C = 1430mm

31W: 3627lm (3000 °K ) / 3796lm (4000°K)

63W: 7255lm (3000 °K ) / 7591lm (4000°K)

C = 2273mm

50W: 5803lm (3000 °K ) / 6073lm (4000°K)

101W: 11609lm (3000 °K ) / 12146lm (4000°K)

C = 2835mm

63W: 7254lm (3000 °K ) / 7592lm (4000°K)

126W: 14511lm (3000 °K ) / 15183lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V / 50Hz
Bescherming – Protection: IP40 / IK08
Norm – Norme: CE EN60598-1
CIE fluxcode:

Op aanvraag – Sur demande

Optie – Option

DALI / Push / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700ºK / 5000ºK / 6500ºK

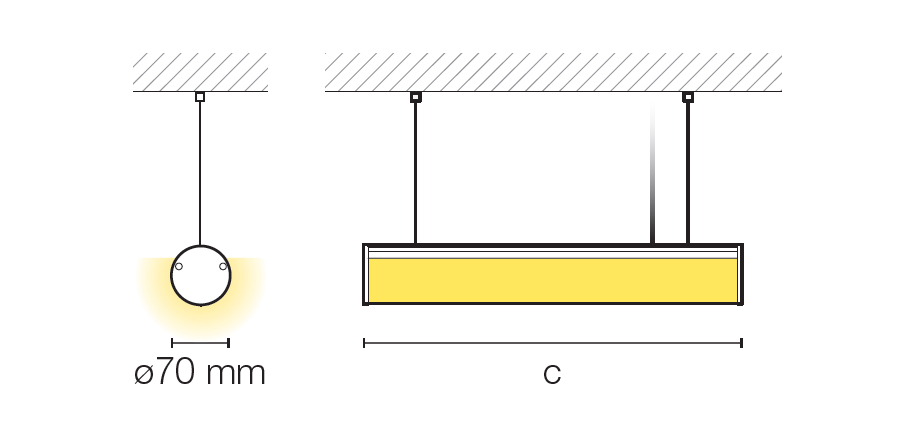

Technische tekening

Technische tekening

Tupoli-V 70 Suspended

Tupoli-V 70 Suspended Tupoli-V 70 Suspended

Technische Fiche

Merk – Marque:  Climar
Type:

Pendel / Suspension

Afmetingen armatuur – Dimensions armature:

Ø70xCmm

C = 868mm / C = 1149mm

C = 1430mm / C = 2273mm

C = 2835mm

Diffuser – Diffuseur: Opal PMMA
Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système:

C = 868mm – 19W / 38W

C = 1149mm – 25W / 50W

C = 1430mm – 31W / 63W

C = 2273mm – 50W / 101W

C = 2835mm – 63W / 126W

Kelvin graden – Degré Kelvin: 3000°K / 4000°K
Lumen:

C = 868mm

19W: 2177lm (3000 °K ) / 2278lm (4000°K)

38W: 4353lm (3000 °K ) / 4555lm (4000°K)

C = 1149mm

25W: 2901lm (3000 °K ) / 3037lm (4000°K)

50W: 5805lm (3000 °K ) / 6073lm (4000°K)

C = 1430mm

31W: 3627lm (3000 °K ) / 3796lm (4000°K)

63W: 7255lm (3000 °K ) / 7591lm (4000°K)

C = 2273mm

50W: 5803lm (3000 °K ) / 6073lm (4000°K)

101W: 11609lm (3000 °K ) / 12146lm (4000°K)

C = 2835mm

63W: 7254lm (3000 °K ) / 7592lm (4000°K)

126W: 14511lm (3000 °K ) / 15183lm (4000°K)

RA – CRI: >80
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Voeding – Alimentation: 230V / 50Hz
Bescherming – Protection: IP40 / IK08
Norm – Norme: CE EN60598-1
CIE fluxcode:

Op aanvraag – Sur demande

Optie – Option

DALI / Push / DSI / DIM 1-10V / Phase-cut



Turnable White / RGB / RGBW



Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours



Sensor: Motion sensor / Ambient Light / Motion & Ambient Light



CRI>90



Bluetooth Control System



2700ºK / 5000ºK / 6500ºK

Technische tekening

Technische tekening
