Log 50 Track High Output

Log 50 Track High Output
Log 50 Track High Output

Technische Fiche

MERK – MARQUE: MOLTO LUCE
MATERIAAL – MATERIAUX: ALUMINIUM
TYPE: RAIL 3 PHASE
AFMETINGEN ARMATUUR – DIMENSIONS ARMATURE: 52X65XLMM

L = 846 MM / L = 1126MM / L = 1407 MM

L = 1687 MM /  L = 2248 MM

KLEUR – COULEUR: ZWART-NOIR / WIT-BLANC / SILVER
DIFFUSER – DIFFUSEUR OPAL / MICROPRISMATIC
UITRUSTING – EQUIPEMENT: LED
SYSTEEMVERMOGEN – PUISSANCE DE SYSTÈME: 20W / 26W / 33W / 40W / 52W
KELVIN GRADEN – DEGRÉ KELVIN: 2700ºK / 3000°K /  4000°K
LUMEN: 20W

OPAL

2500 LM (2700°K) / 2570 LM (3000°K) / 2570 LM (4000°K)

MICROPRISMATIC

2380 LM (2700°K) / 2440 LM (3000°K) / 2440 LM (4000°K)



26W

OPAL

3330 LM (2700°K) / 3420 LM (3000°K) / 3420 LM (4000°K)

MICROPRISMATIC

3170 LM (2700°K) / 3250 LM (3000°K) / 3250 LM (4000°K)



33W

OPAL

4170 LM (2700°K) / 4280 LM (3000°K) / 4280 LM (4000°K)

MICROPRISMATIC

3960 LM (2700°K) / 4070 LM (3000°K) / 4070 LM (4000°K)



40W

OPAL

5000 LM (2700°K) / 5130 LM (3000°K) / 5130 LM (4000°K)

MICROPRISMATIC

4760 LM (2700°K) / 4880 LM (3000°K) / 4880 LM (4000°K)



52W

OPAL

6660 LM (2700°K) / 6840 LM (3000°K) / 6840 LM (4000°K)

MICROPRISMATIC

6330 LM (2700°K) / 6510 LM (3000°K) / 6510 LM (4000°K)

RA – CRI: >80
AFKOELING – REFROIDISSEMENT: PASSIEF – PASSIF
VOORSCHAKELAPP – BALLAST: LED DRIVER
VOEDING – ALIMENTATION: 220-240V AC 50/60HZ
BESCHERMING – PROTECTION: IP20
NORM – NORME: CE EN60598-1
CIE FLUXCODE: OP AANVRAAG – SUR DEMANDE
OPTIE – OPTION DALI / ON-OFF

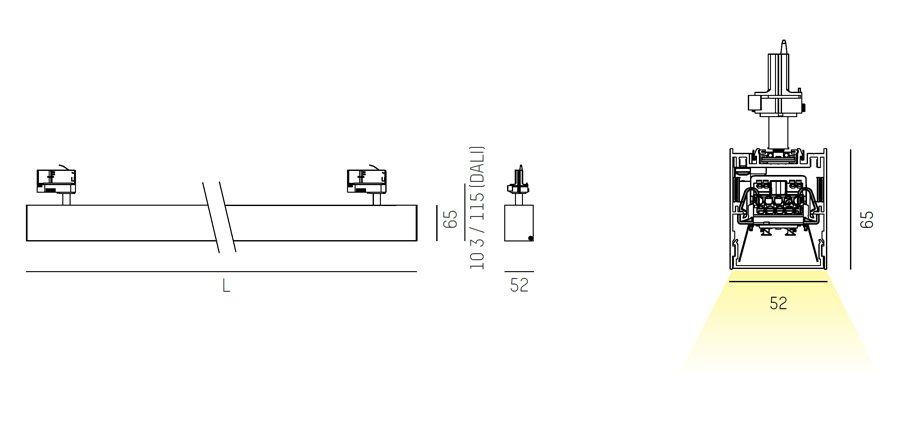

Technische tekening

Technische tekening
